HKS GR Corolla BCD Piston Kit G16E H-COMP Triple Tumble STEP3 D87.5
SPECIAL ORDER ITEM DIRECT FROM JAPAN
- Does not qualify for free shipping due to freight requirement.
- Estimated arrival will be incorrect at checkout.
IMPORTANT: A freight shipping quote will be provided via email after purchase or upon request.
Estimated arrival will be incorrect at checkout.
Special order items are final sale.
Once an order is placed it cannot be cancelled or returned.
An expected ship date will be sent via email within 2-3 days of purchase.
Please direct all inquires to support@limitplus1.com
Product Specifications
|
MAKE
|
TOYOTA
|
| MODEL | GR COROLLA |
| MODEL YEAR | 2023-2025 |
| ENGINE | G16E-GTS |
| CHASSIS CODE | GZEA14H |
| DRIVE TRAIN | AWD |
New G16E-GTS Piston & Conrod Kit for High Compression:
Original Piston Crown Design to improve knock resistance
Parts Included in Piston Kit

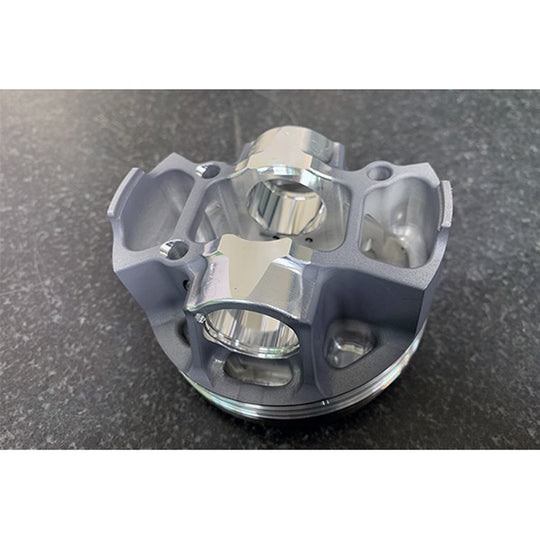

- Piston Kit D87.5 (incl. Piston Rings and Pins)
Billet, machined, nickel plated, 2-layer molybdenum coating
Key Features
- Piston Diameter: D87.5 / Weight: 352g
- To enhance knock resistance and achieve higher compression ration, we have adopted HKS's unique "Triple Tumble" crown structure. (Triple Tumble crown structure)
- The piston crown's design creates a third tumble flow on the intake side as the piston moves upward. This quickly spreads the flame near the edge of the intake side, which helps prevent engine knock.
- High-temperature-resistant A2618 material and precision machining combine to deliver significant weight.
- "Bridge Concept Design" (BCD) structure enhances structural rigidity and contributes to weight reduction.
- Three oil jets deliver cooling oil precisely for effective cooling.
- Nickel plating above the top ring groove improves knock resistance and wear resistance.
- A two-layer coating enhances anti-seizure properties and reduces friction.
- Original shortening piston pin design reduces the weight of the piston pin boss section.
- Titanium coating on the top ring enhances durability.
- Precisely machined edges prevent heat spots.
Compatibility
- Toyota GR Corolla G16E-GTS GZEA14H AWD
NOTE: *For best performance, install the piston kit and connecting rods as a set. Installing them separately may cause imbalance and vibrations.
