Cusco GR86 / BRZ Sport S Coilovers - Street
SPECIAL ORDER ITEM
- Estimated arrival will be incorrect at checkout.
- This item is not ready to ship.
- May ship with signature confirmation.
Special order items are final sale.
Once an order is placed it cannot be cancelled or returned.
This product has a longer lead time than most. Lead times may vary on products with multiple options.
To check availability, please direct all inquires to support@limitplus1.com

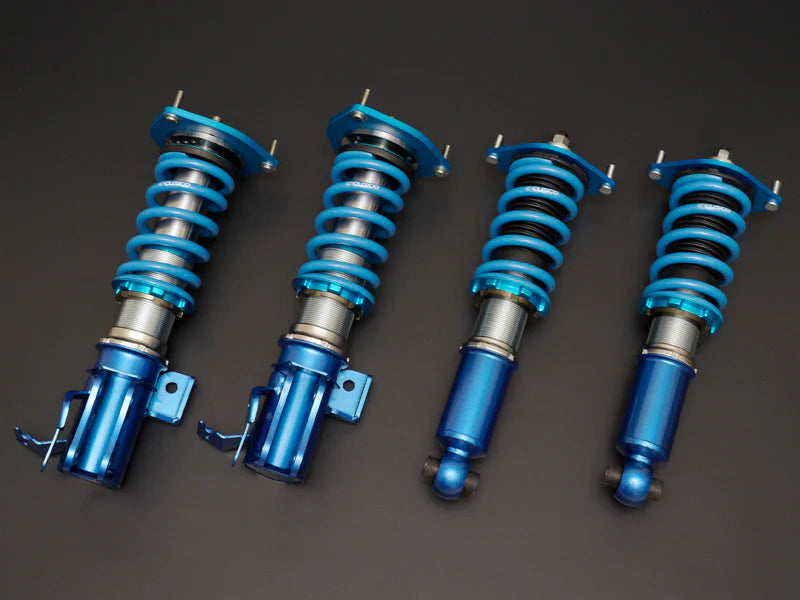

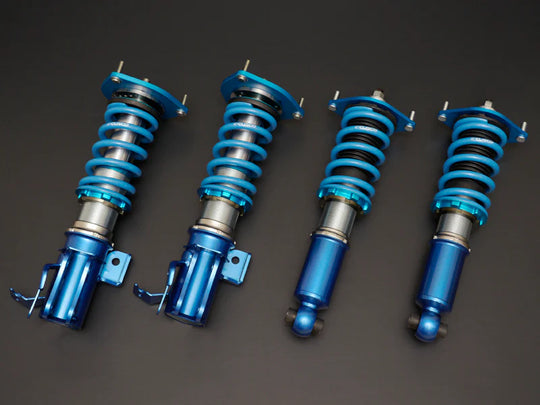

Cusco GR86 / BRZ Sport S Coilovers
Adoption of large-capacity "mono-tube shock". Authentic full-spec with 24-step damping force adjustment that satisfies a high level from city driving to circuit driving.
Spring Rates
- 8K Front / 7K Rear
Monotube Construction
- Allowing for larger diameter piston for rigidity and creating larger volume chamber, the system allows for higher range of piston speeds, and finer level of damper control at all stroke speeds.
24 Step Adjustment Range
- Patented Cusco needle-valve are precision fitted to exacting adjustment values so multiple dampers are matched to the requirements at each corner of the car. Precision adjustments can be made for critical increments.
Full Length Tapped Height Adjustable Case
- The damper body case is fully tapped to allow maximum height adjustment, separately from the spring preloads. Because damper stroke range can be positioned independently the stroke range can remain ideal against the spring regardless of height setting, thereby enhancing the handling limits as well as securing a compliant ride and suspension functionality
Cusco Sport "Blue Springs"
- Cusco Sport "Blue Spring" are shot-peened and wound using the advanced anti-sagging metallurgy. *Available in choice of optional rates.*

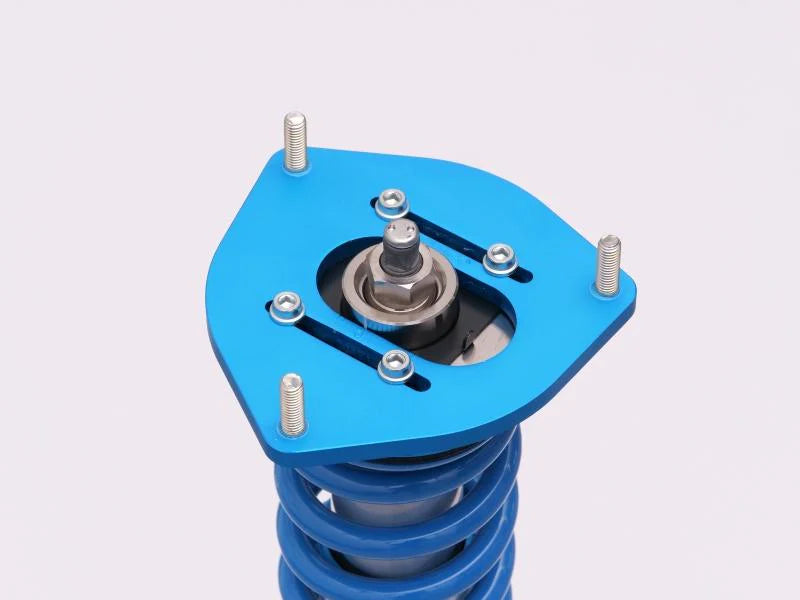

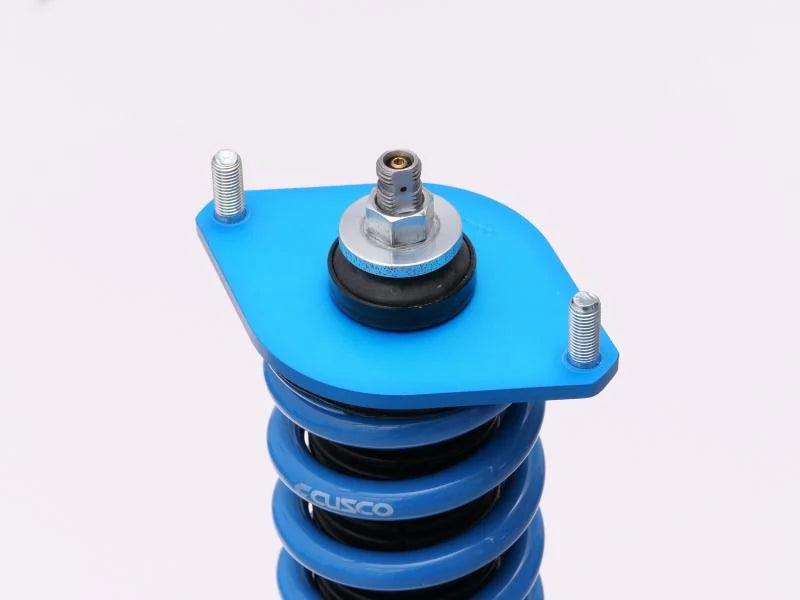

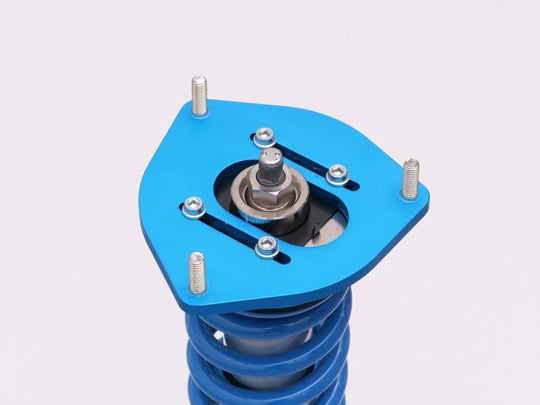

Precision Crafted Upper Mounts
- Offered in standard camber adjustable units, or with our new "CC" Camber/Caster adjustable units optimizing alignment for even finer resolutions of settings.
Inverted Piston Design
- Inverted Piston Design is used on all McPherson strut type applications to aid in extra durability and precision due to the fact that these suspension designs require the dampers not only to function but also are part of suspension structural integrity.

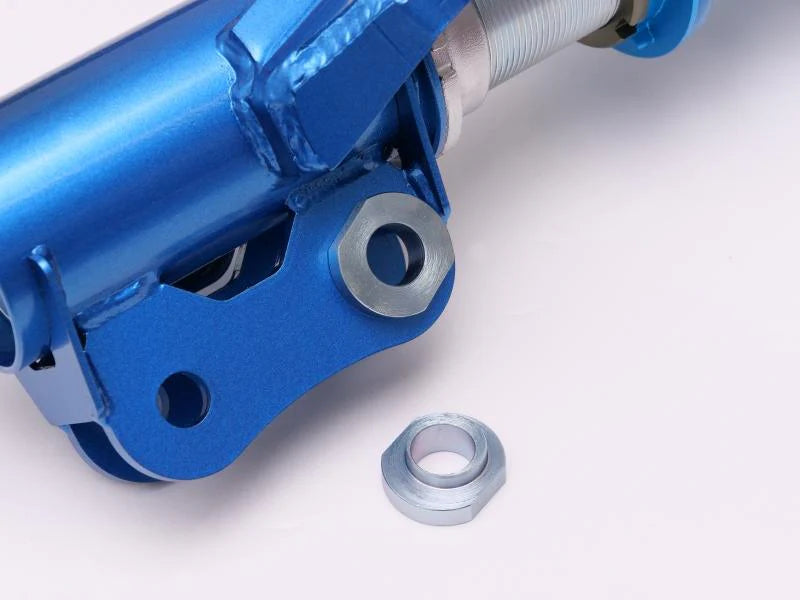

Lower Bracket Camber Adjustment
- Allows additional level of camber and wheel clearance settings through the use of correction bolts supplied with some McPherson strut type suspension units.
Compatibility
- 2022+GR86/BRZ
