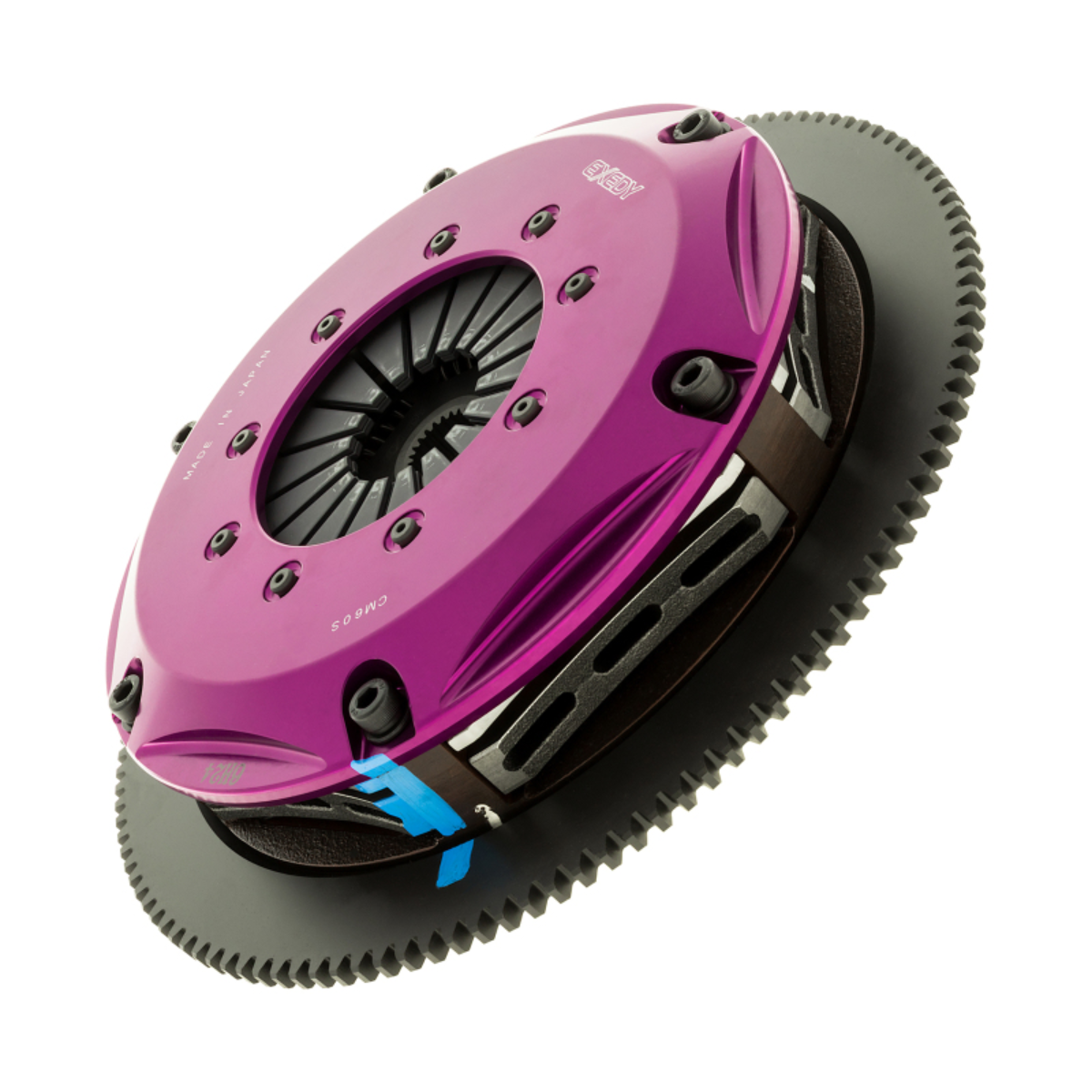

Exedy GR86 / BRZ Hyper Twin Clutch Kit
exeTM052SD
SPECIAL ORDER ITEM
- Estimated arrival will be incorrect at checkout.
- This item is not ready to ship.
- May ship with signature confirmation.
Special order items are final sale.
Once an order is placed it cannot be cancelled or returned.
This product has a longer lead time than most. Lead times may vary on products with multiple options.
To check availability, please direct all inquires to support@limitplus1.com
Overview
Exedy Racing Hyper Multi‑Twin Clutch Kit is a premium performance clutch kit engineered for high-power naturally aspirated and modified engines. Designed to excel in demanding driving environments — from spirited street performance to drag racing, road-course competition, and drift applications — this twin-disc multi-plate clutch delivers exceptional torque capacity and durability beyond standard OE units.
High friction performance and durable construction make the Hyper Twin kit a solid upgrade for enthusiasts seeking stronger clutch holding power without jumping all the way to a triple-plate competition setup.
Performance & Capability
-
Twin-disc, multi-plate design enhances friction surface area for superior torque handling and quicker engine response versus single-plate clutches.
-
Rated to handle approximately 600+ ft-lbs (615 ft-lbs) of torque at the flywheel*, making it ideal for heavily modified applications.
- Cerametallic friction material (T5001) offers high heat resistance and grip under extreme load, minimizing slippage in performance driving.
- Sprung center disc design improves drivability by smoothing engagement and absorbing shock loads to protect the drivetrain.
Design Features
-
200mm disc diameter balances compact size with maximum surface area for robust engagement and power transfer.
-
Push-type pressure cover simplifies installation and reinforces stable engagement.
-
Lightweight chromoly steel flywheel included in the kit reduces rotating mass for quicker throttle response and rev-up performance.
-
Spline: 24-tooth, 25.2mm to match factory input shaft.
-
Purple anodized forged aluminum cover enhances strength, heat performance, and visual appeal.

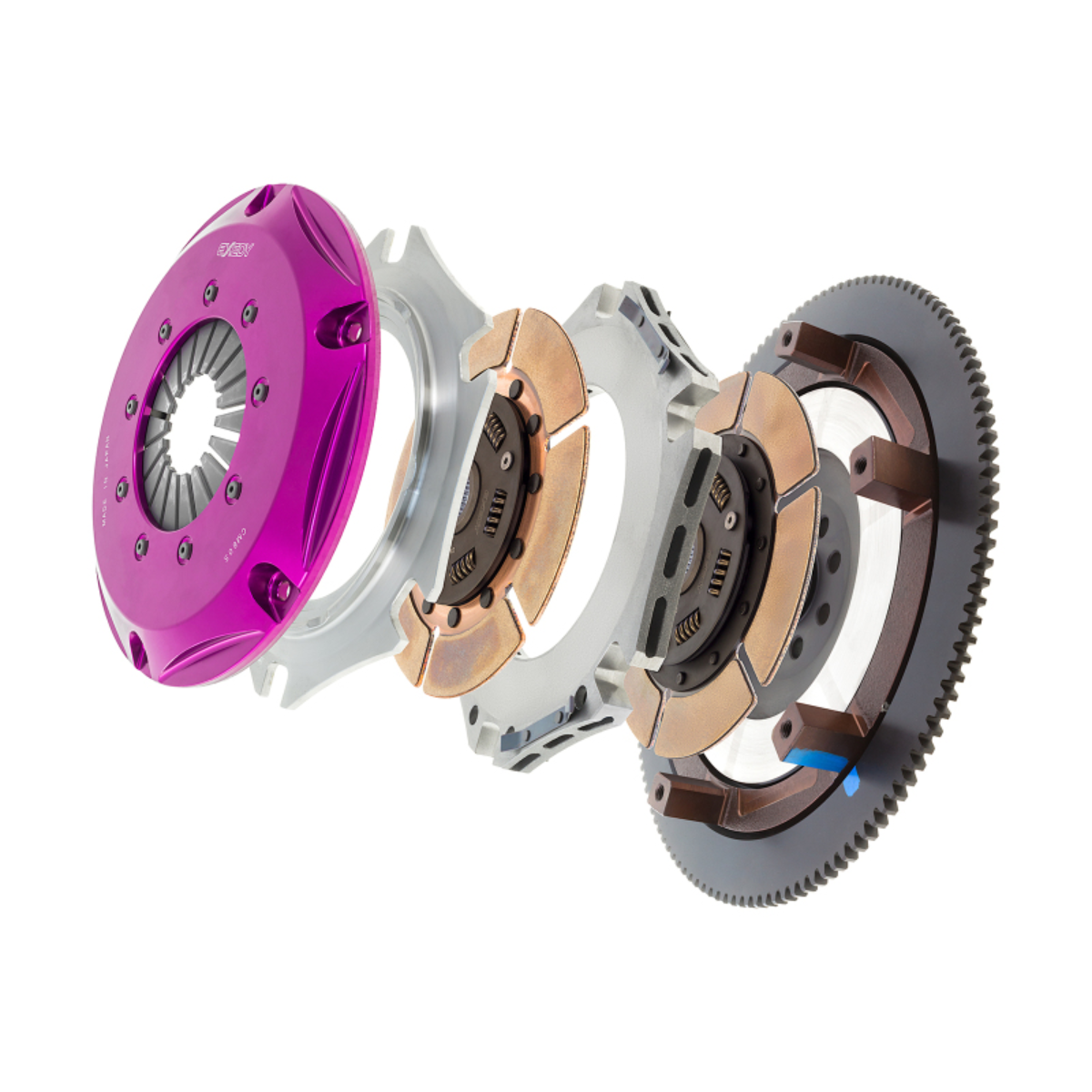

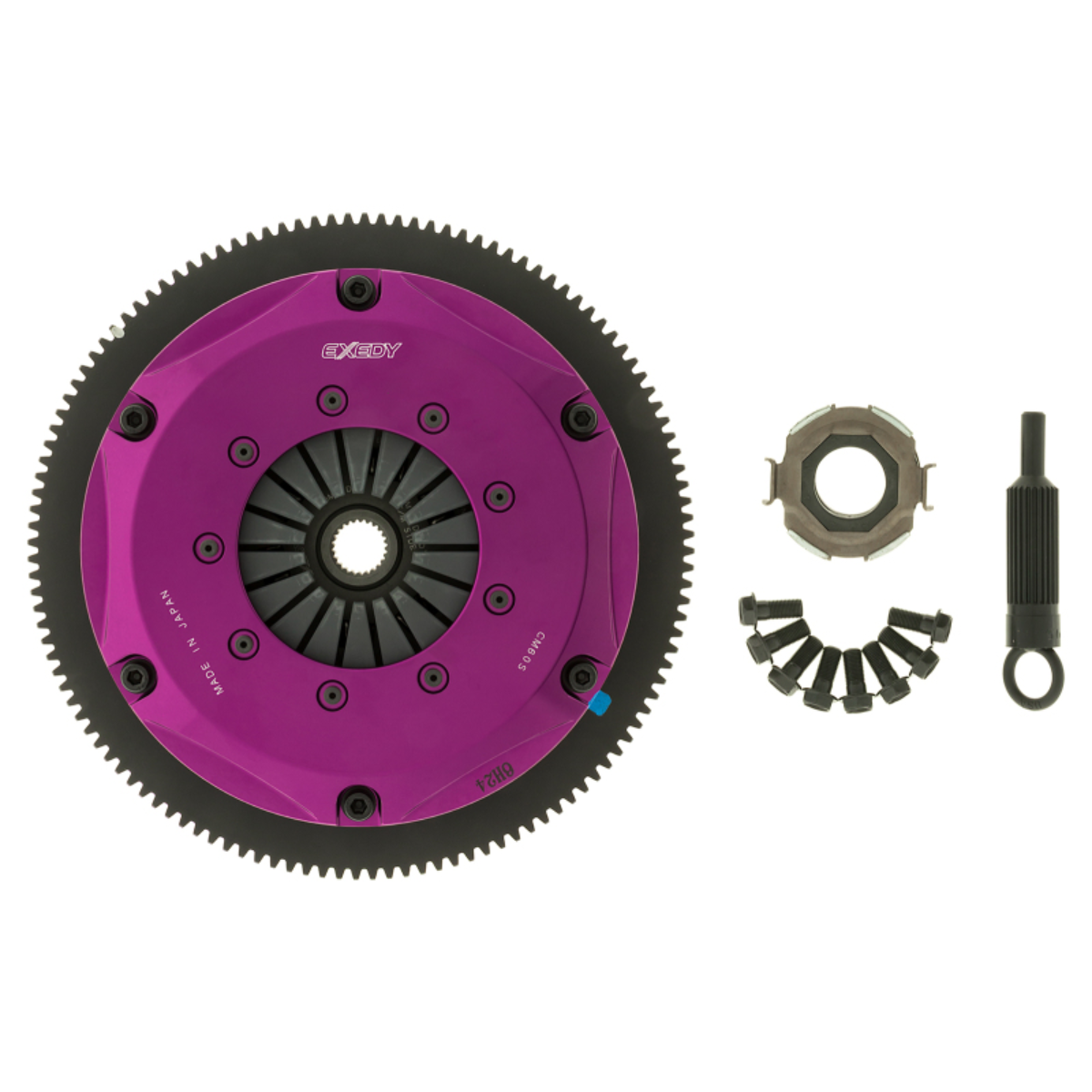

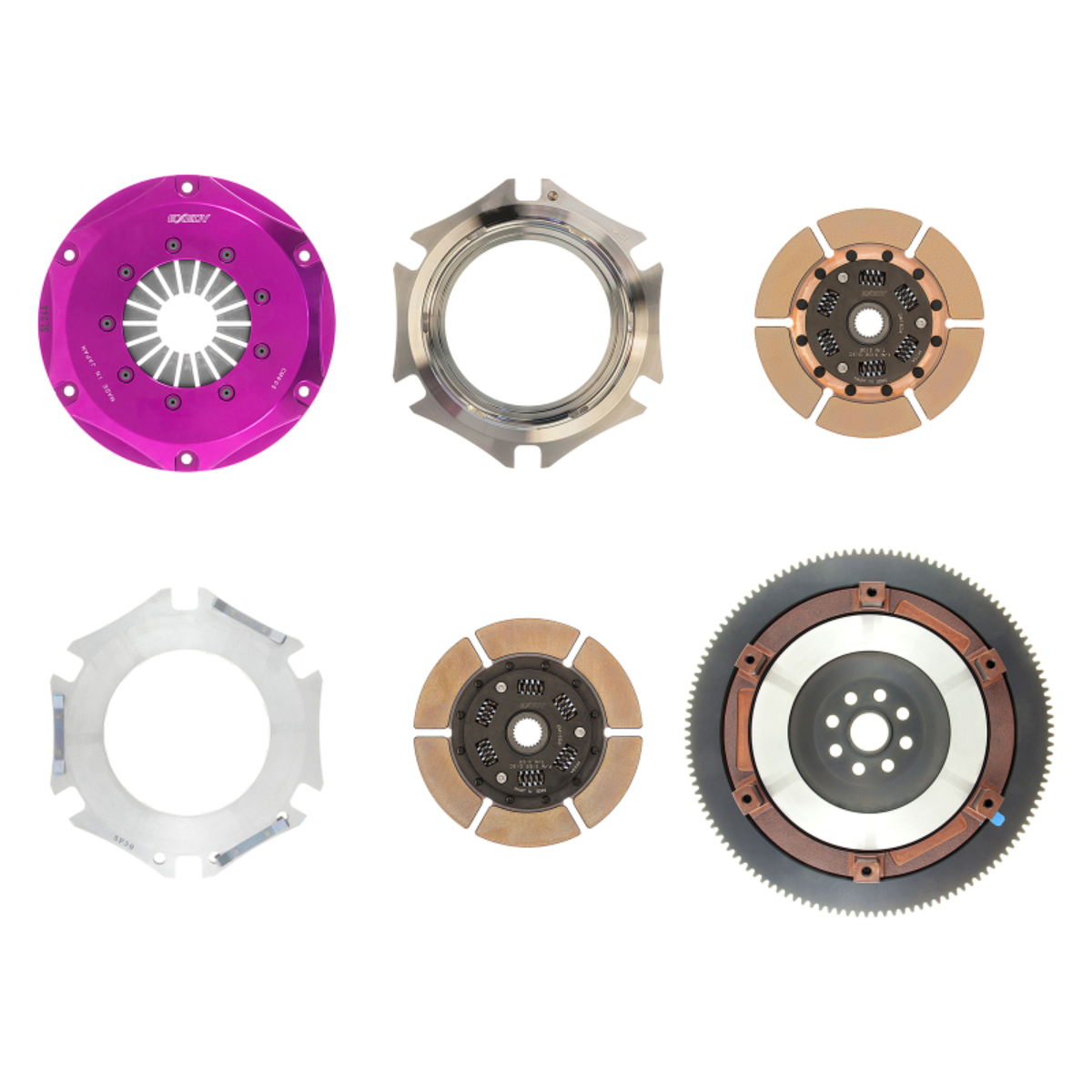

Included
-
Twin friction discs (multi-plate clutch discs)
-
Pressure plate assembly
-
Chromoly steel flywheel
-
Flywheel bolts
-
Clutch alignment tool
-
Release bearing (throw-out bearing)
Compatibility
- 2013-2021 FRS/GT86/BRZ
- 2022+ GR86/BRZ
Note: This is a performance/racing clutch kit, not just an OEM replacement.
