Radium Engineering GR86 / BRZ Crankcase Vent Side Catch Can Kit

Overview

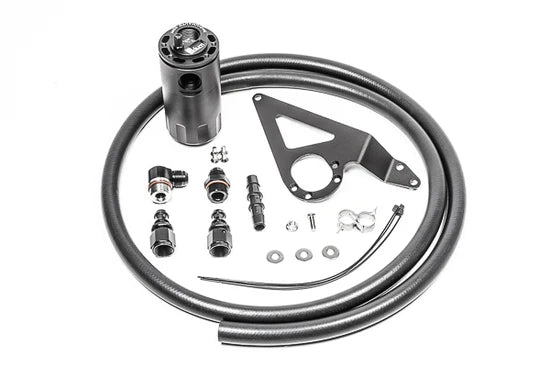

The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. This prevents oil buildup in the intake, intercooler system walls, throttle body, and intake manifold. This effectively raises the octane, can increase engine performance from cleaner inlet air, and can lower hydrocarbon emissions. The closed system prevents unwanted oil vapors from entering into the cabin. Catch can kits include everything needed for a complete installation.

Chassis Specifics

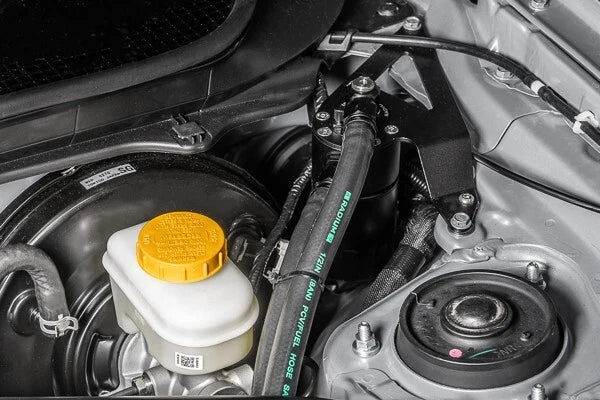

The CCV kit mounts on the LH side of the engine bay.

This catch can runs inline with the 1/2" breather port. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this hose will experience vacuum and would normally be drawing unwanted crankcase vapors, unspent fuel, and oil sludge into the air filter intake pipe. If the engine is turbocharged or supercharged and you are finding oil accumulation stuck in the intercooler, this catch can is a necessity as oil will lower the thermal efficiency properties of the heat exchange process.

Emptying

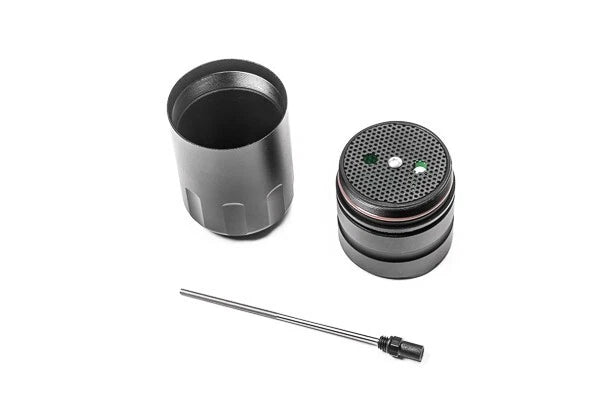

Catch cans can be emptied by unscrewing the lower reservoir and removing it from the vehicle to dump out, or in cases where there is available space under the catch can.

In cases where oil collection is excessive you may have to address an issue with the engine. The reasons a catch can will collect an excess of oil include

• Excessive blowby from engine damage
• Crankcase windage from an over-full oil level
• Poor placement of breather ports and/or poor baffling inside breather ports
• PCV valve not closing and leaking under heavy load

Features

• Direct fitment with no drilling required
• Large 10AN ORB inlet and outlet ports
• 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• 7 fluid ounce capacity
• Patented Fluid Lock® system

NOTE: Because the Radium Engineering catch cans are pressure sealed, they are great for boosted applications as well. Connecting to the intake manifold is permitted.
