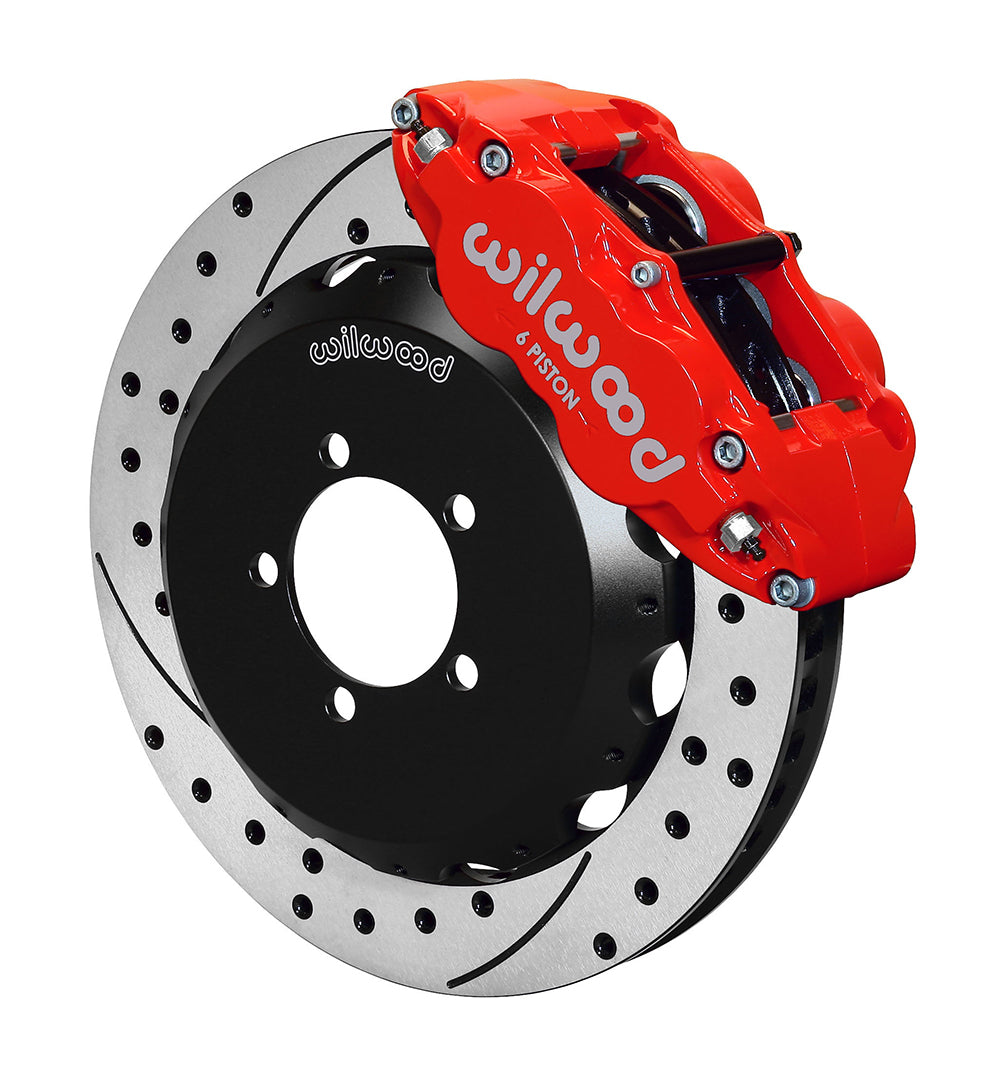

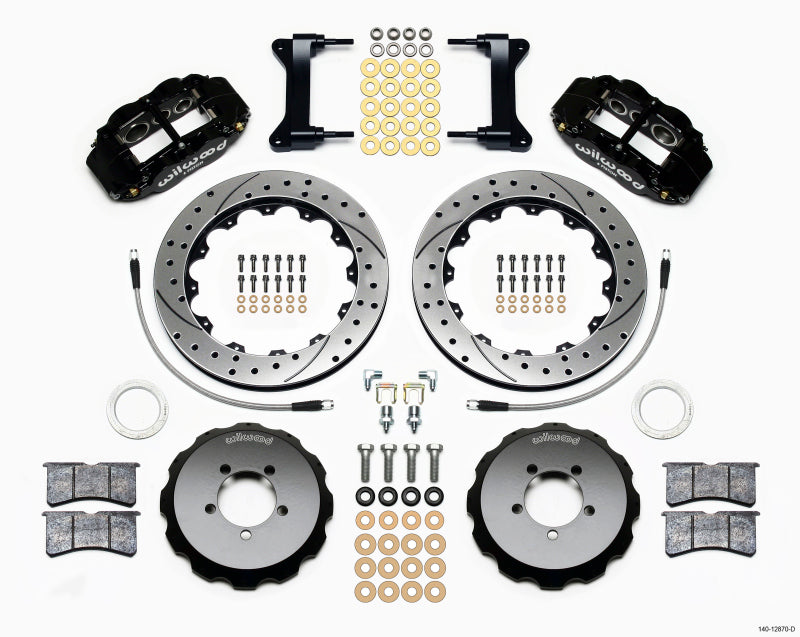

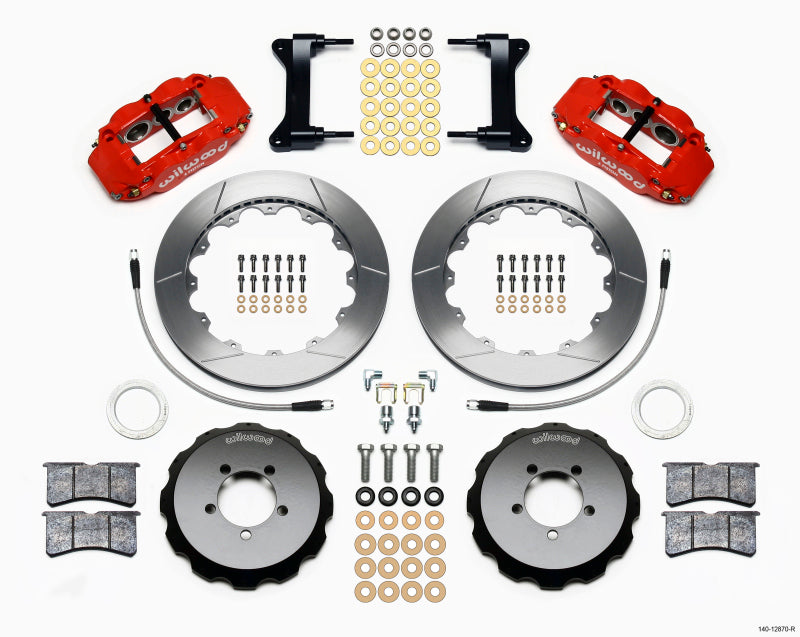

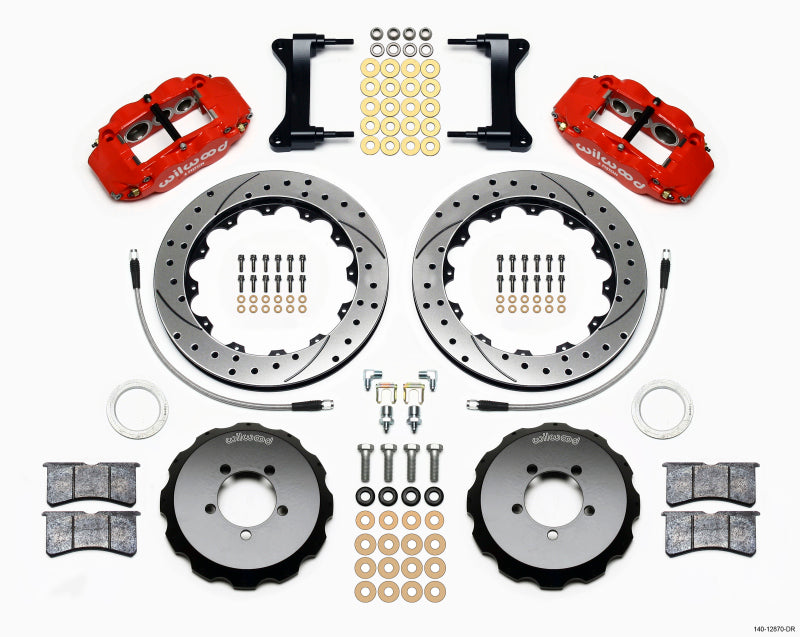

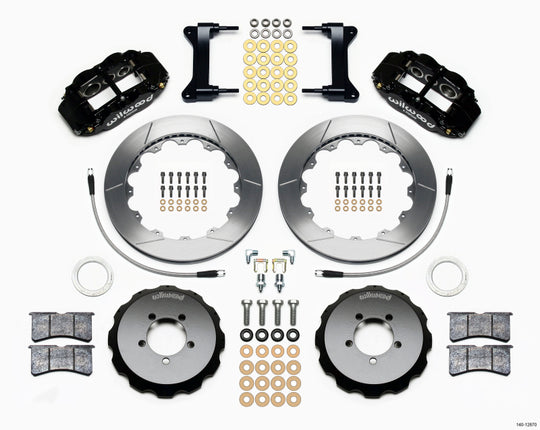

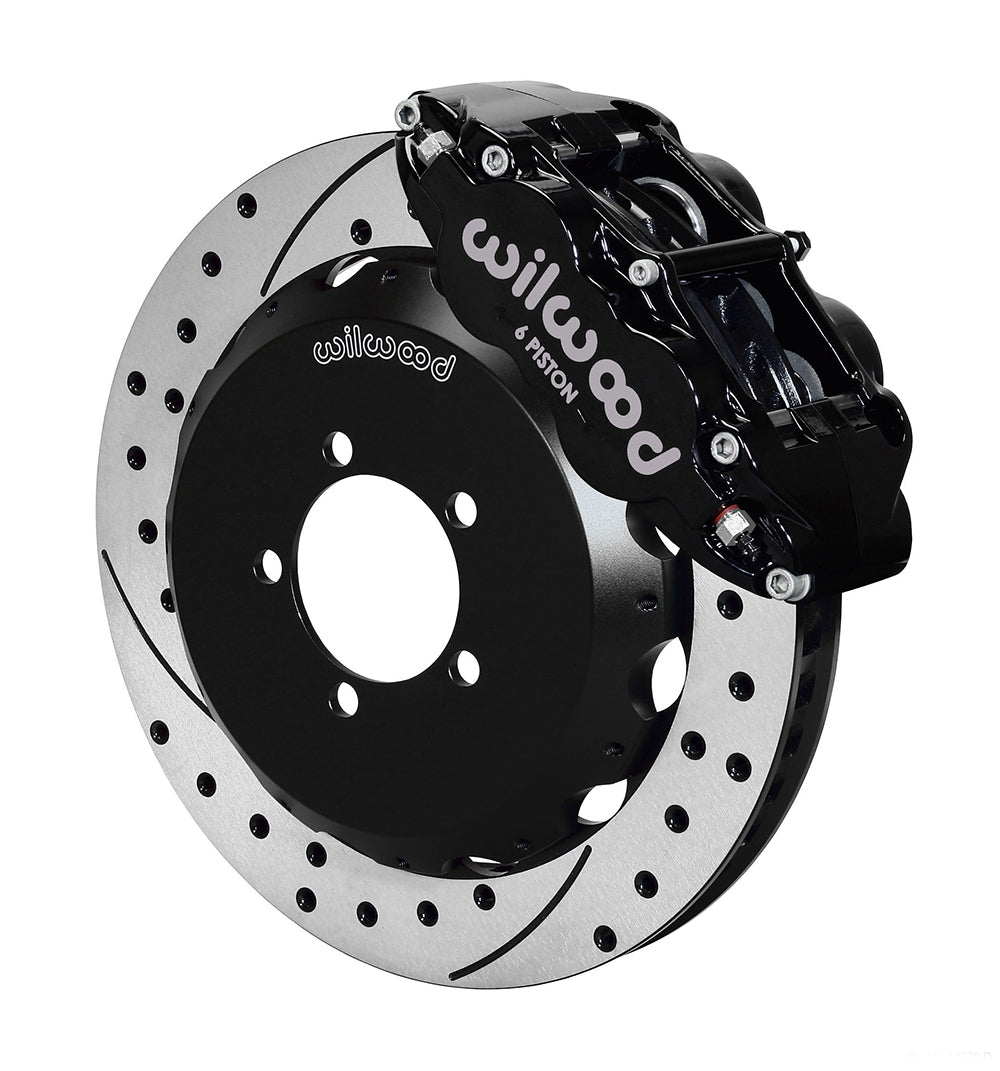

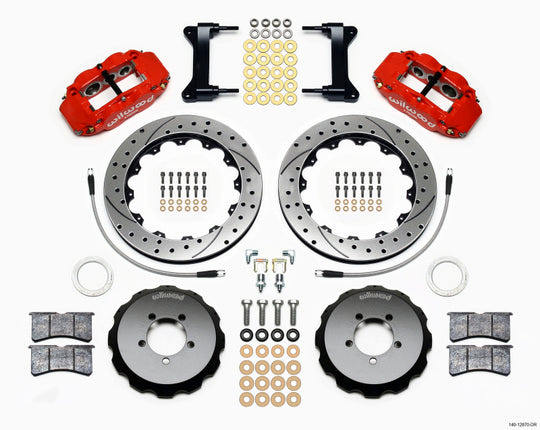

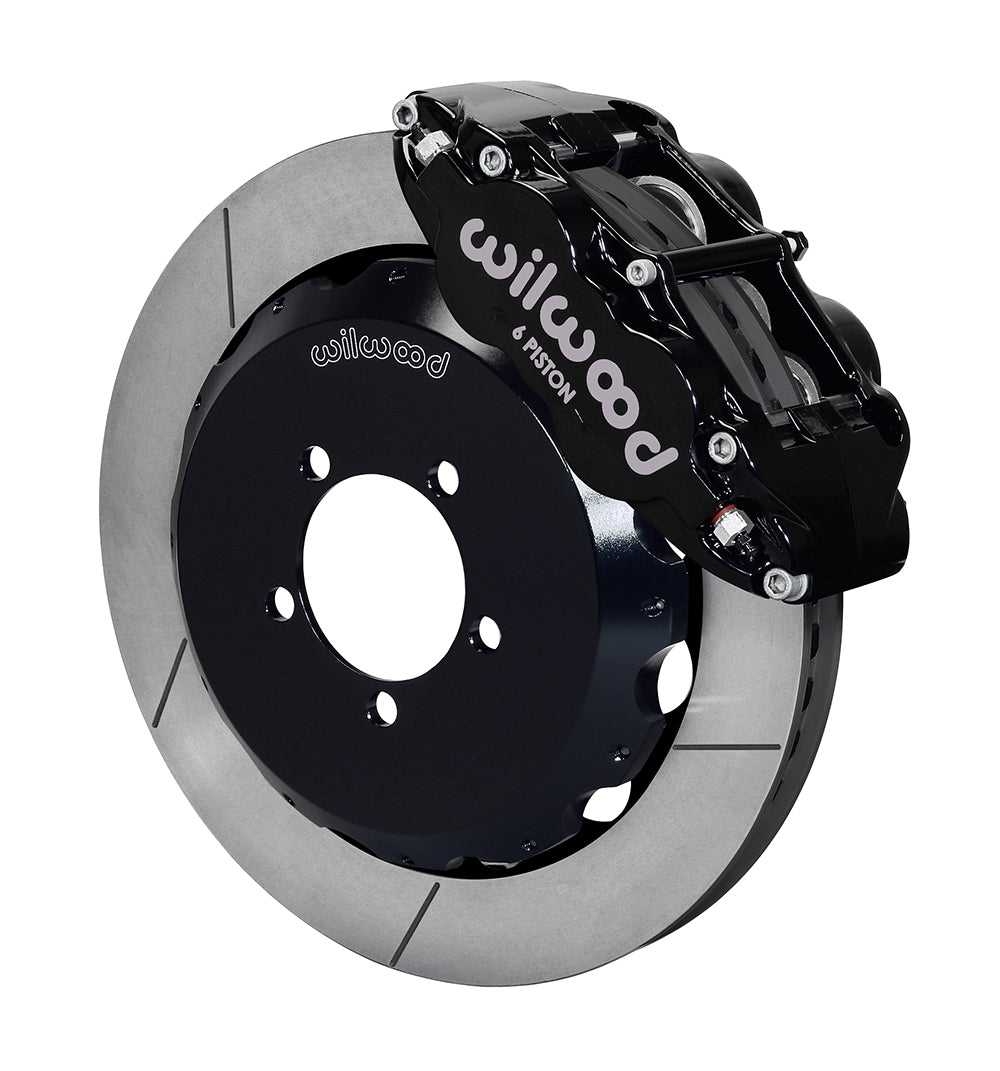

Wilwood GR86 Forged Narrow Superlite 6R Big Brake Brake Kit - Front

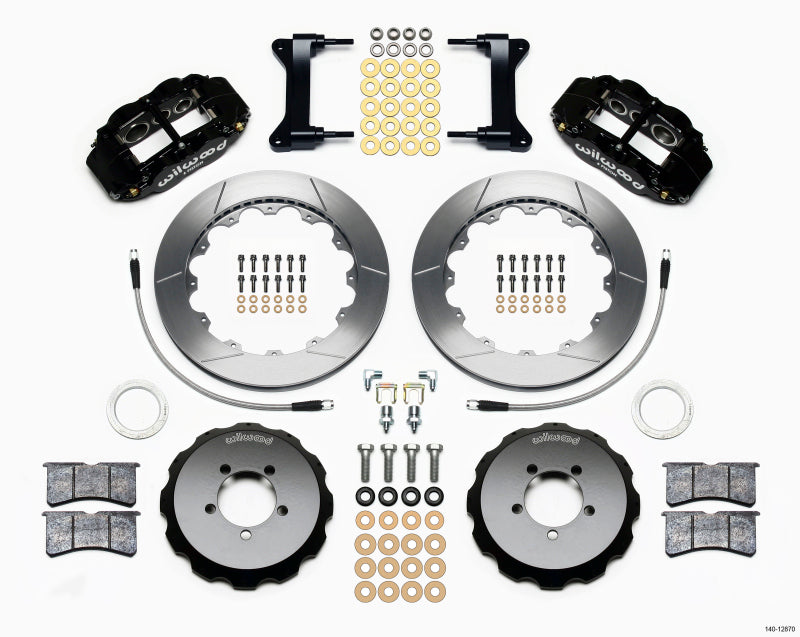

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 12.88" rotor kits for these popular Import vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track /drift cars. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

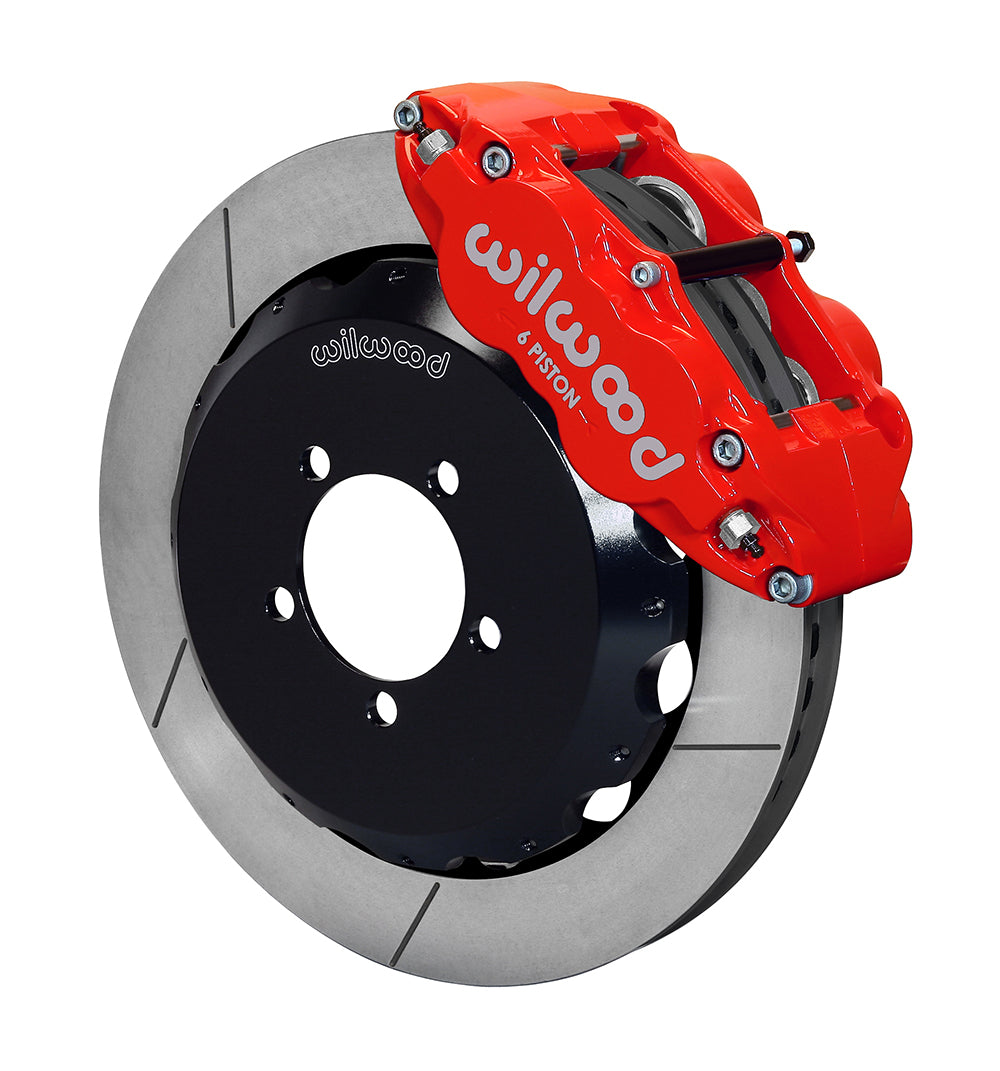

Caliper Information:

• Type: Forged Narrow Superlite 6R
• Finish Color: Black Powder Coat or Red Powder Coat
• Piston Count: 6
• Piston Area (In): 4.04
• Piston Type: Stainless
• Mount Type: Radial
• Brake Pad Plate: 7416
• Brake Pad Area (In): 8.2
• Brake Pad Volume (In): 3.8
• Pad Compound: BP-10

Rotor Information:

• Type: GT 48 Curved Vane (Slotted) or SRP Drilled Rotor (Drilled & Slotted)
• Style: GT Slotted or SRP Drilled & Slotted
• Surface Finish: Plain (Slotted) or Black Electro Coat (Drilled & Slotted)
• Material: Spec-37 Iron
• Outside Diameter (In.): 12.88
• Width (In.): 1.10
• Vane Count: 48 CV
• Design Type: GT (Slotted) or SRP-BLK (Drilled & Slotted)
• Bedded: No
• Dynamically Balanced: Yes

NOTE: 2022+ Subaru BRZ will need modification to fit because it uses an aluminum steering knuckle that prevents many big brake kits from fitting. Modification to the knuckle will be needed if attempting to mount to a 2022+ BRZ (tS models EXCLUDED).
