Name: Brembo GR86 / BRZ Front GTR BBK - 6 Piston Billet Monoblock Calipers w/ Slotted 2-Piece Rotors
Brand: Brembo
SKU: 1M2.8069AR
Price: 9095.0 USD
Availability: InStock

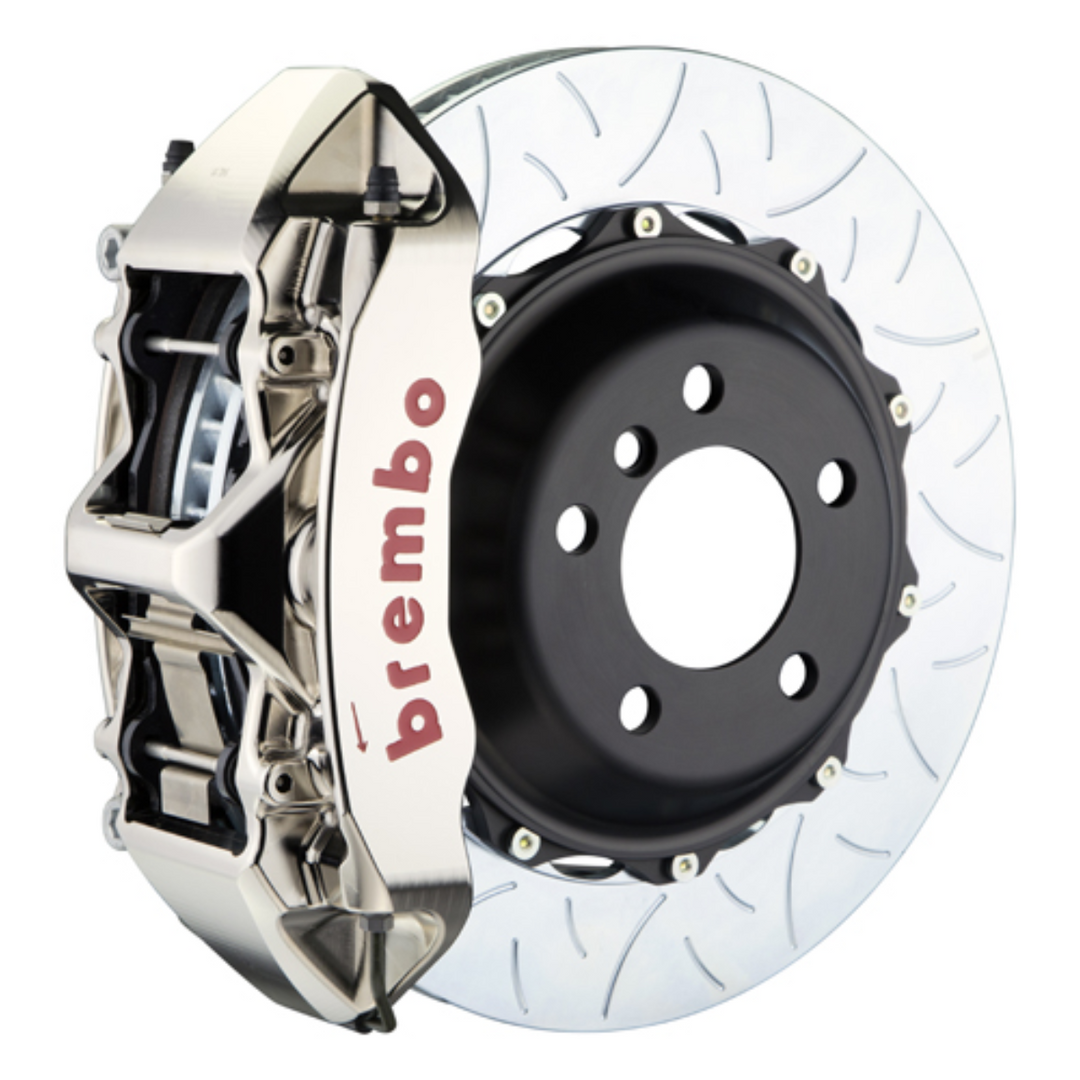

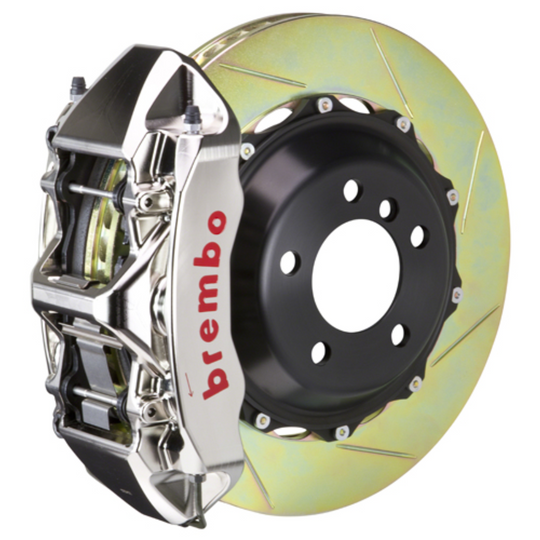

Brembo GR86 / BRZ Front GTR BBK - 6 Piston Billet Monoblock Calipers w/ Slotted 2-Piece Rotors

$9,095.00

Shipping calculated at checkout.

Slotted Rotor Type

Type 1

Type 3

Typically ships in 5-7 days

Estimated arrival may be incorrect at checkout.

FREE DOMESTIC SHIPPING ON ORDERS OVER $199

Complete Big Brake Kit:

(Front) 6-Piston Billet Monobloc Calipers | 355mm (14'') 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Caliper
Caliper Body: Billet Monobloc Radial Mount
Caliper Piston Configuration: 6-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert

Disc
Disc Type: Slotted Type 1 / Type 3
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 355mm
Disc Width (Measurement): 32mm
Disc Air Gap (Measurement): 16mm
Disc Annulus (Measurement): 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 72 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 94.5 | 84

Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

Wheel Fitment
How to Measure Wheels for Required Clearance
Brake Profile Cross Section
