HKS GR86 / BRZ 2.5L High Comp Step 1 Full Piston Kit
SPECIAL ORDER ITEM DIRECT FROM JAPAN
- Does not qualify for free shipping due to freight requirement.
- Estimated arrival will be incorrect at checkout.
IMPORTANT: A freight shipping quote will be provided via email after purchase or upon request.
Estimated arrival will be incorrect at checkout.
Special order items are final sale.
Once an order is placed it cannot be cancelled or returned.
An expected ship date will be sent via email within 2-3 days of purchase.
Please direct all inquires to support@limitplus1.com
SPECIAL ORDER - SHIPPING TIMES MAY VARY
(Note: special order items are non returnable and unable to be canceled, estimated shipping dates at checkout will be incorrect.)
HKS FA24 2.5L High Comp Step 1 Piston Full Kit

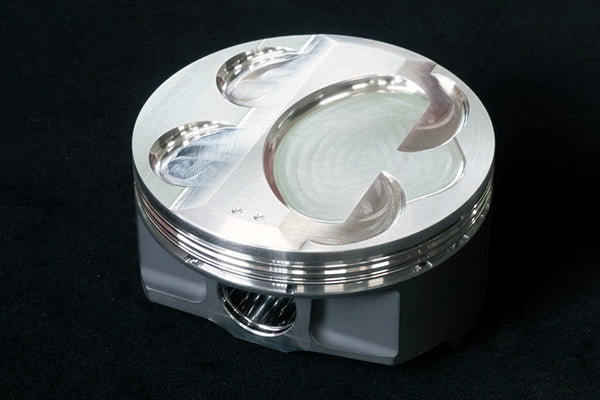

Piston Kit
- To prevent the breakage of the second land, the material employs A2618 material, which has high-temperature strength, to achieve a low pin height that eliminates the need for making any service holes.
- 2-layer molybdenum coated to help reduce friction.
- The cavity on the piston head optimizes the atomization of direct injection.
- 3D Piston crown shape sustains tumble flow.
- The uneven shape of the piston head allows using the high-lift camshaft.

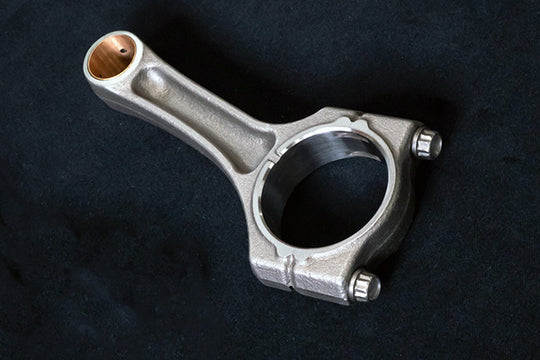

Connecting Rod
STEP 1
- Exclusive conrods designed for longer stroke. The crank pin size is designed for a dedicated size. Thus it eliminates the modifications on the engine side.
- It optimizes the connecting rod bolt size and employs the high-strength split-type (not machined the cutting surface) I-beam.
Crankshaft
- Crankshaft uses a forged material.
- It has a dedicated pin journal size. Combination use of the HKS connecting rod is recommended.

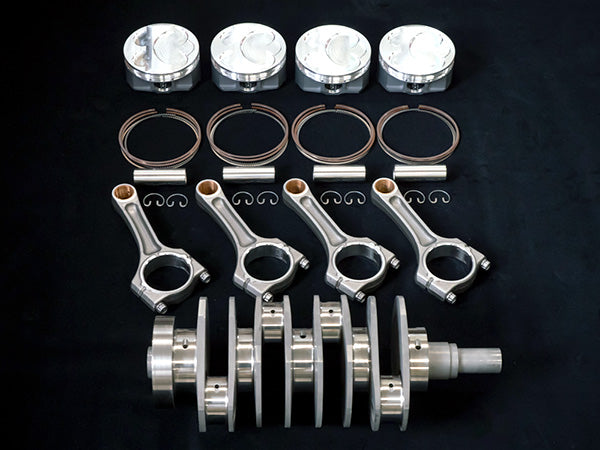

What's Included
- Forged piston kit
- I-beam connecting rod
- Forged crankshaft
HKS recommends using STEP 2 for a vehicle with a turbo that tends to be generated high torque.
** Not CARB Legal**
