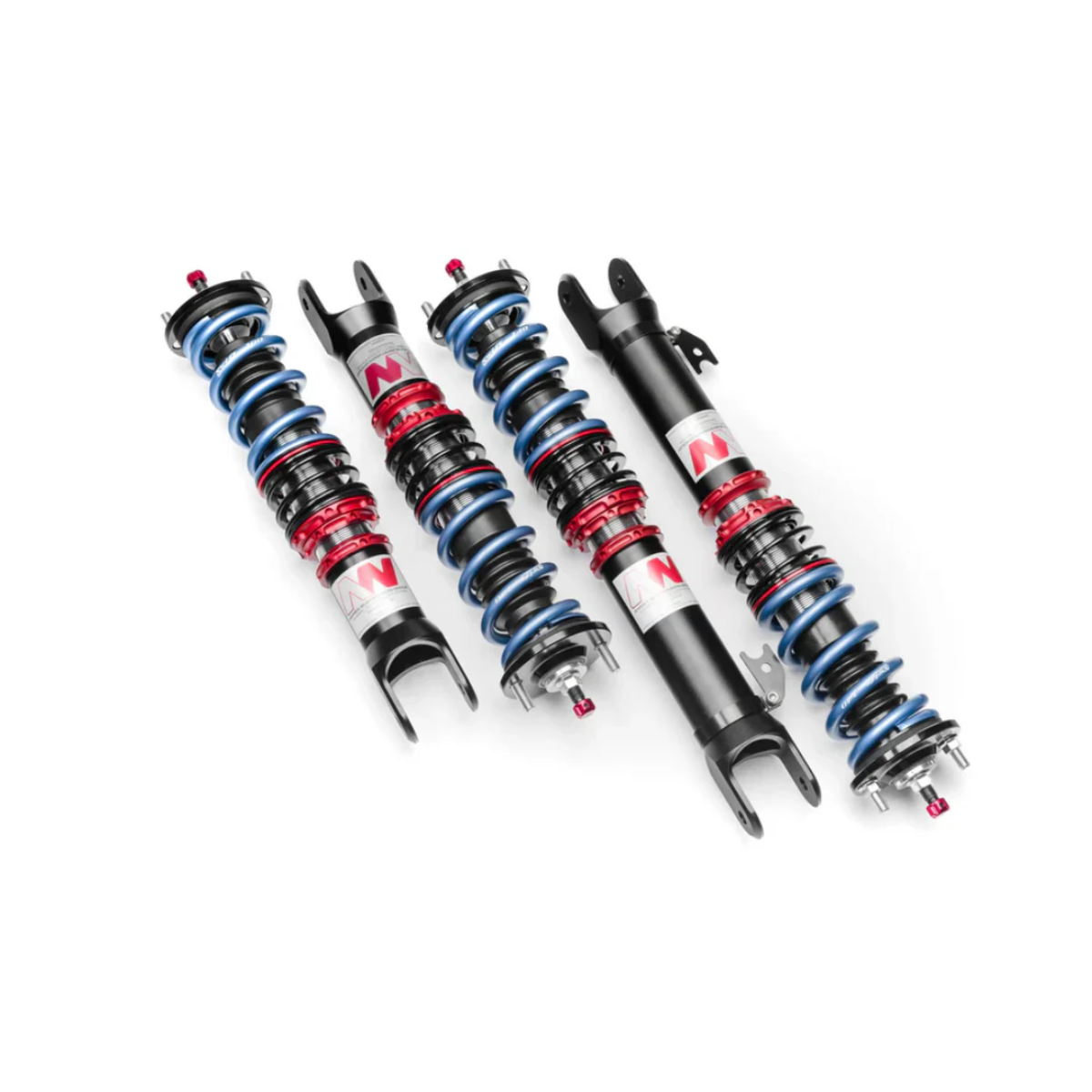

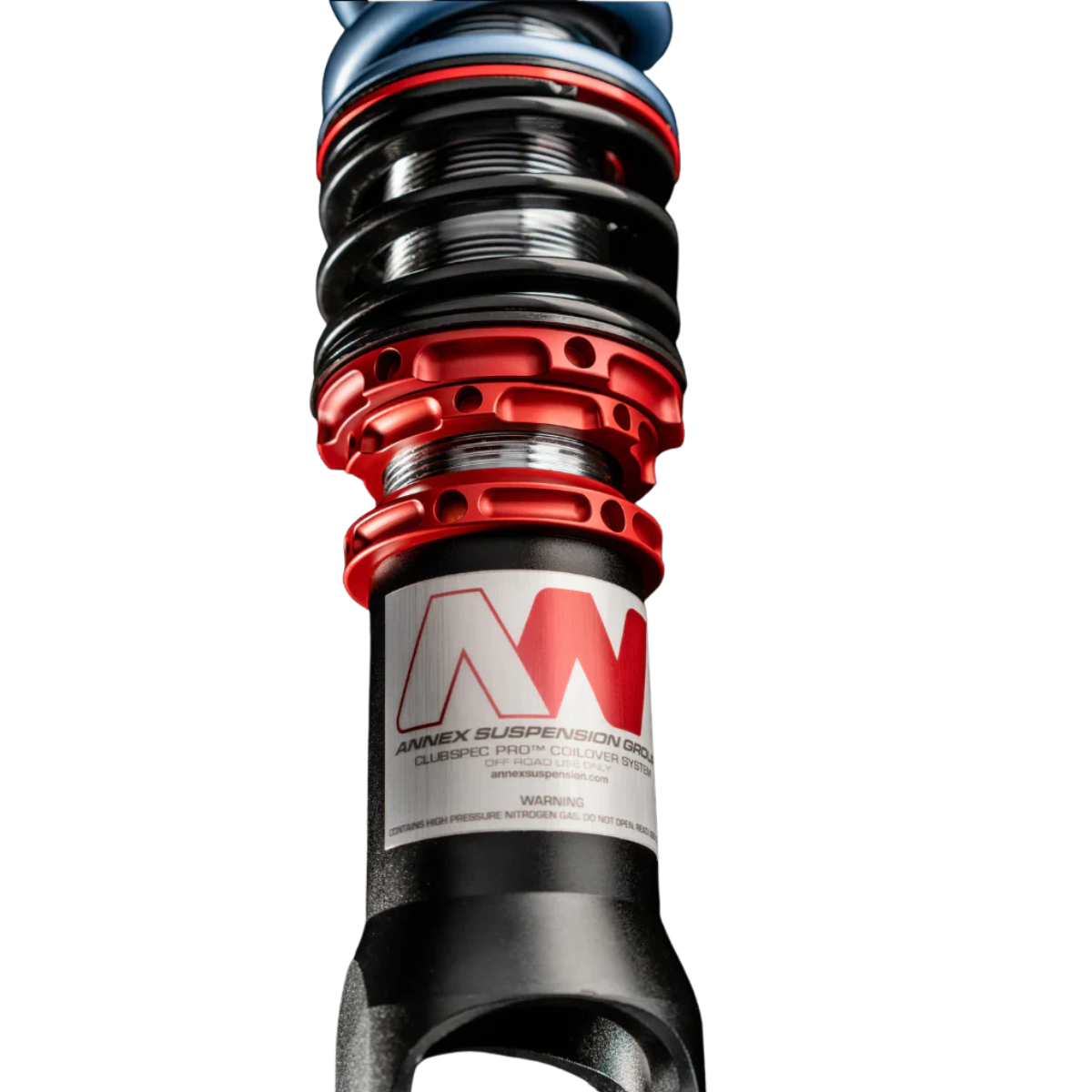

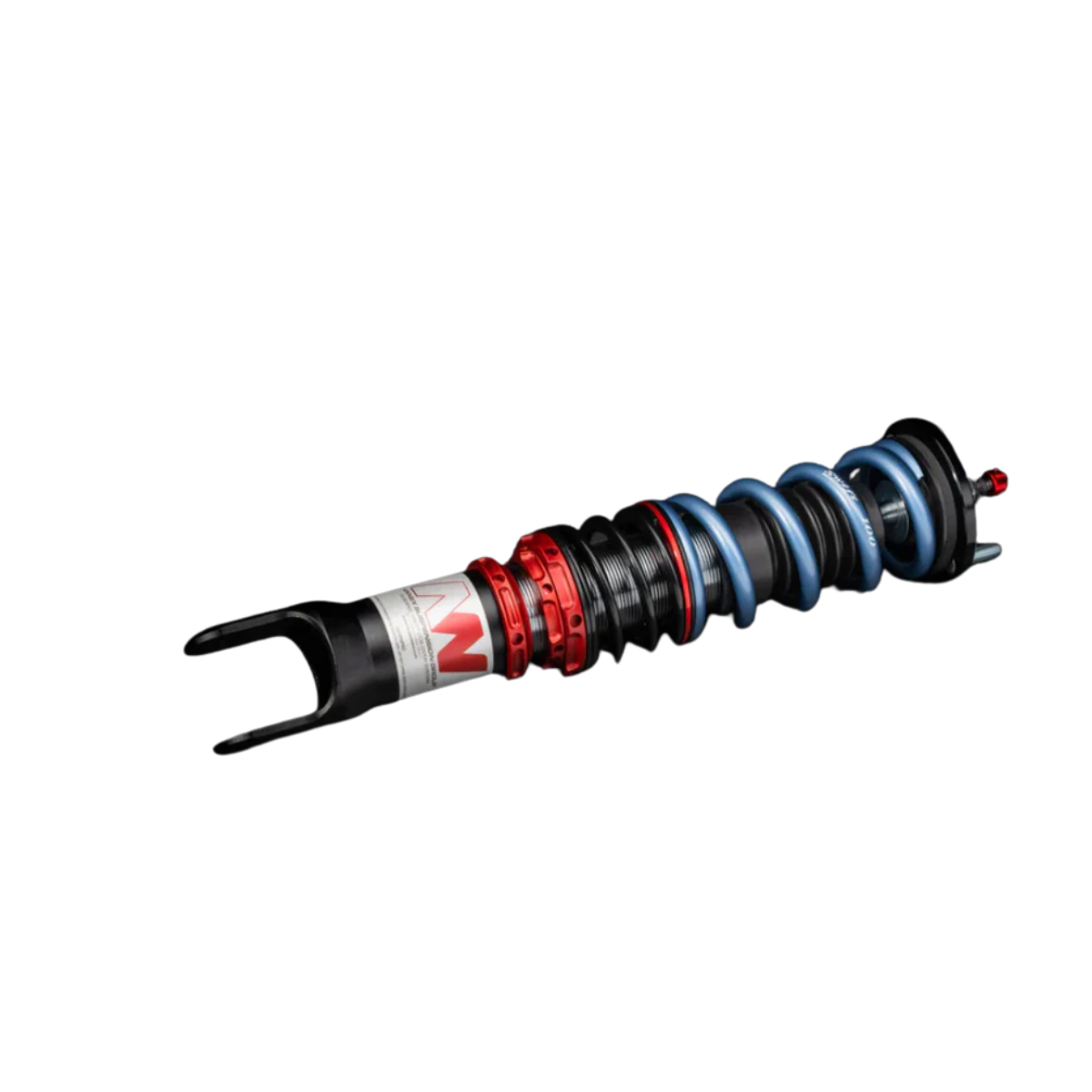

Annex Suspension Group GR86 / BRZ ClubSpec Pro Coilovers
- Estimated arrival will be incorrect at checkout.
- Will ship with signature confirmation.
Estimated arrival will be incorrect at checkout.
An expected ship date will be sent via email within 1-2 days of purchase.
Please direct all inquires to support@limitplus1.com
- FREE DOMESTIC SHIPPING ON ORDERS OVER $199
**Annex Suspension Group Coilovers are built to order. (Please allow 4-6 week)**
CHAMPIONSHIP WINNING PERFORMANCE
ClubSpec Pro is for dedicated track enthusiasts that want a stiffer spring rate with a more track-oriented valving package. ClubSpec Pro was designed to be the fastest single adjustable damper on the market. We engineered our own double digressive race pistons and valving profiles that have been spec’d for every chassis. Clubspec Pro devours track curbing, however, care is still taken to ensure that ride quality is not lost.
Each set of Annex coilovers are hand-built by our California team to your exact needs.
Features
- Proprietary High-Flow, Double Digressive pistons
- Racing Winning Valving Profiles with Sandvik Shims

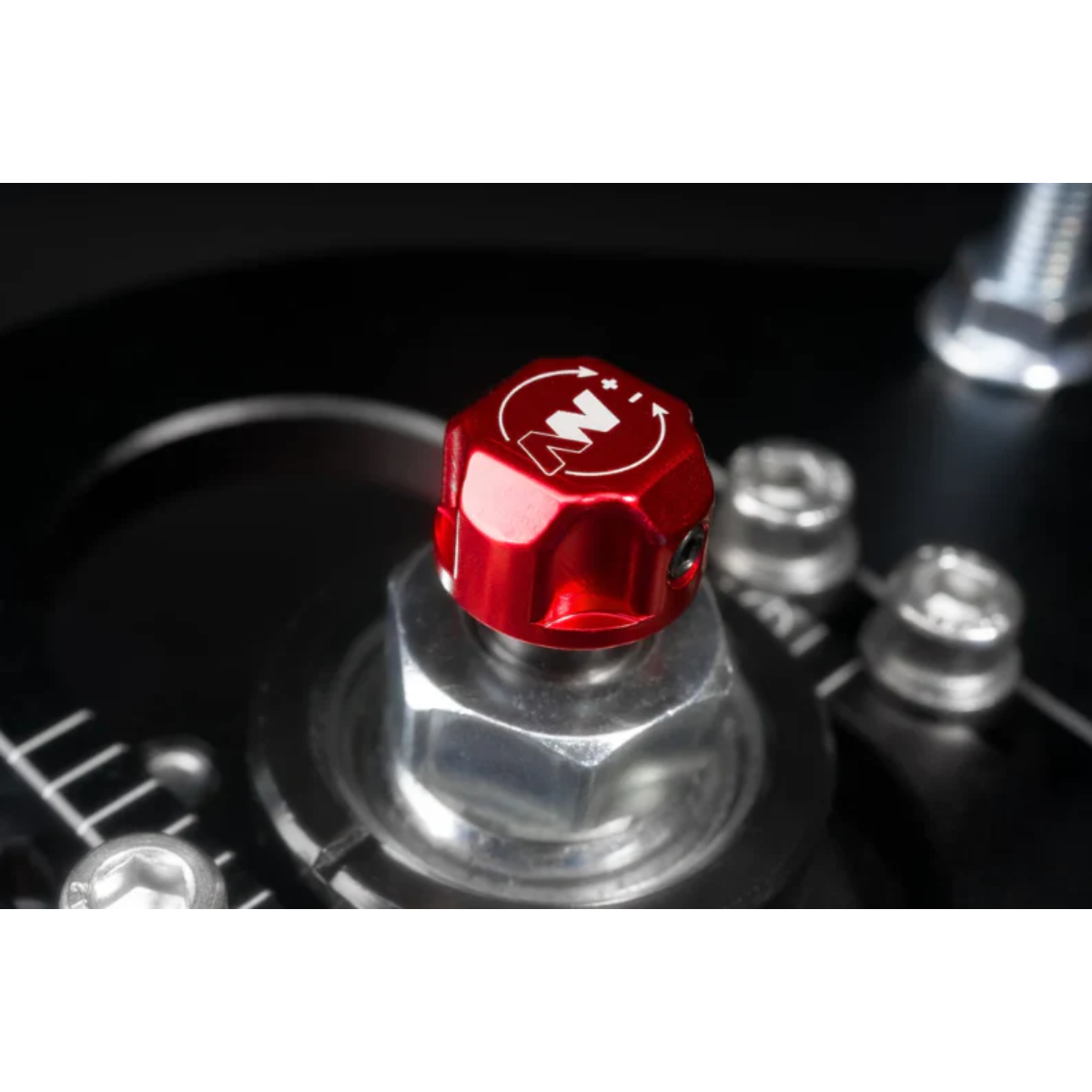

- Single-Adjustable with 24 Distinct Settings

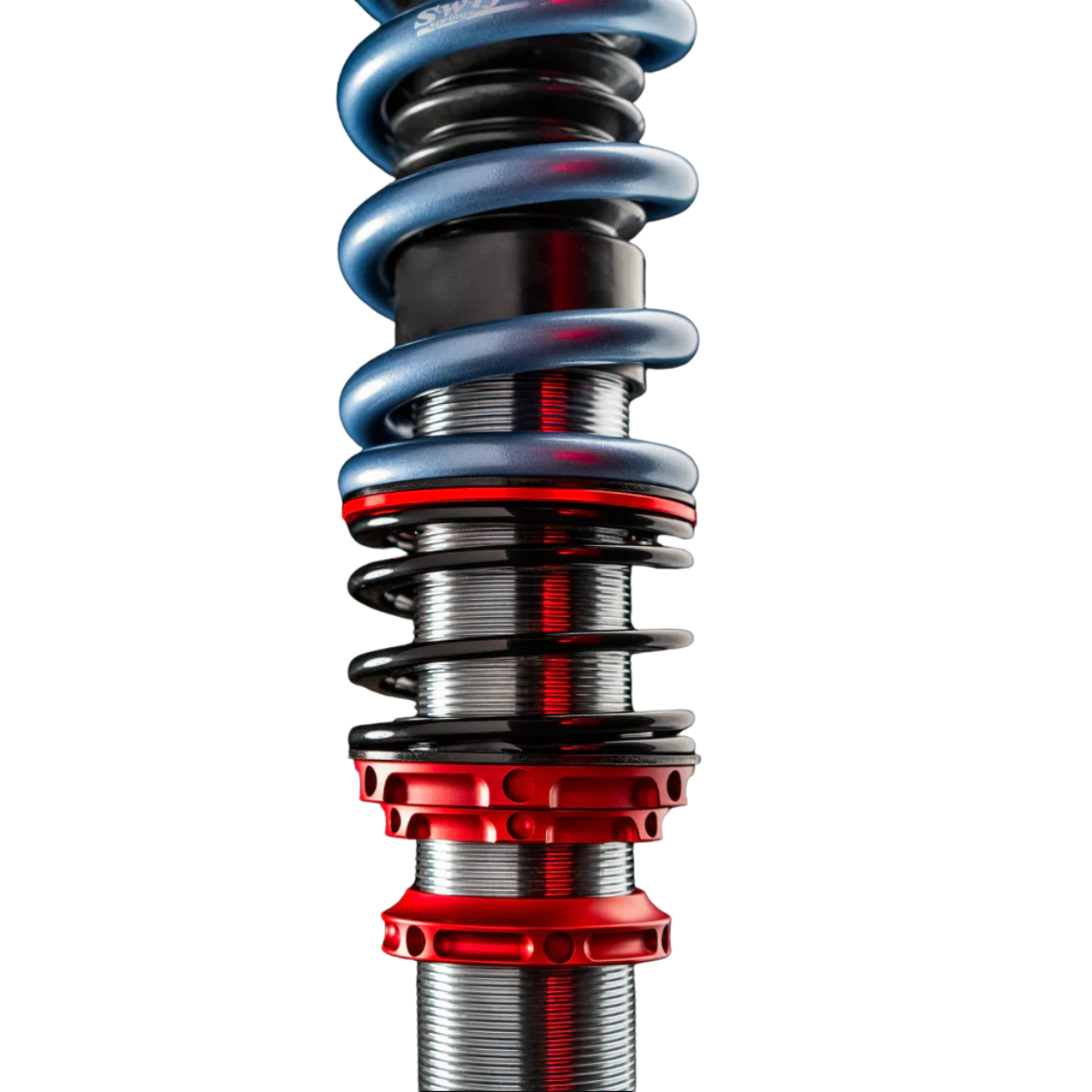

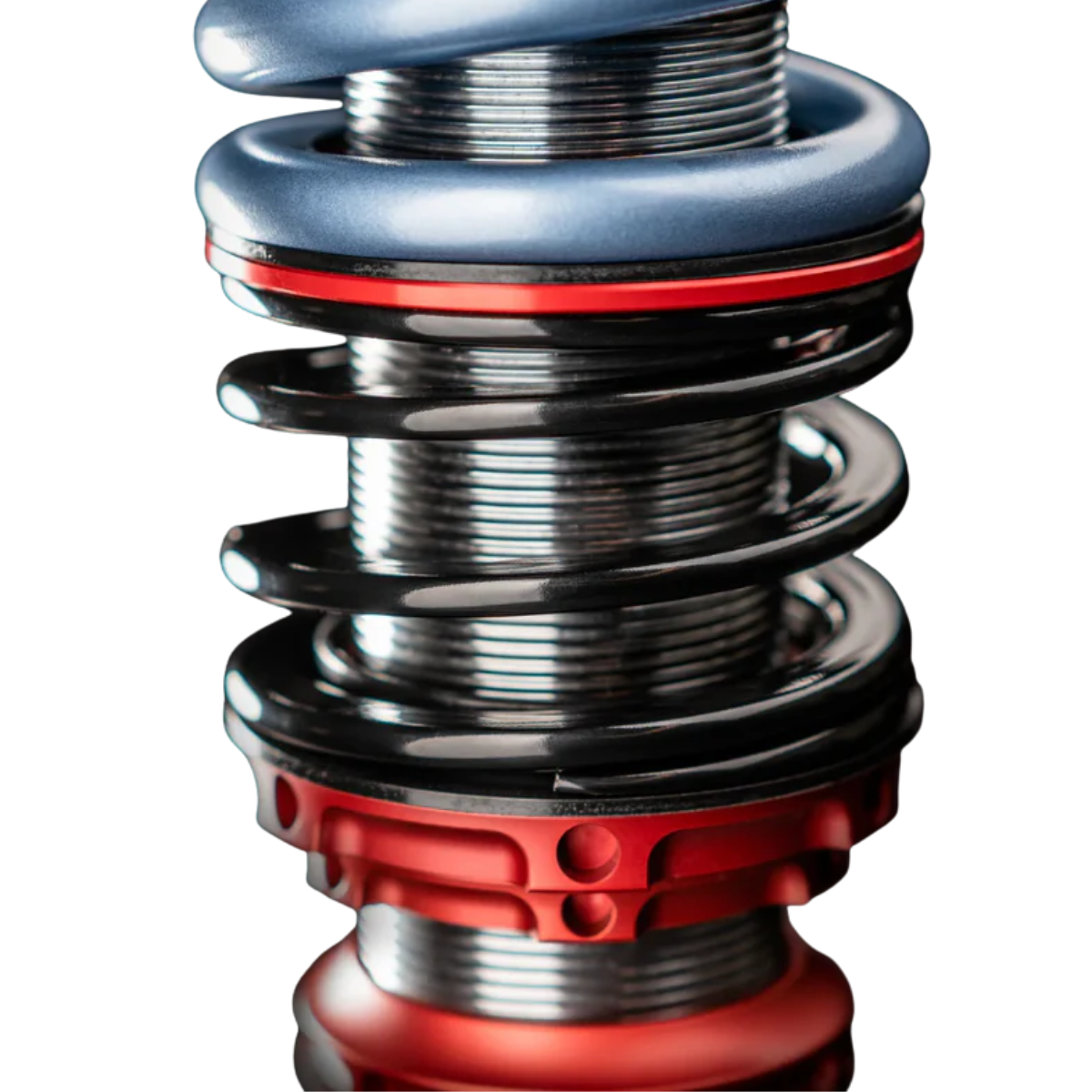

- Grip and Droop Enhancing Helper Springs

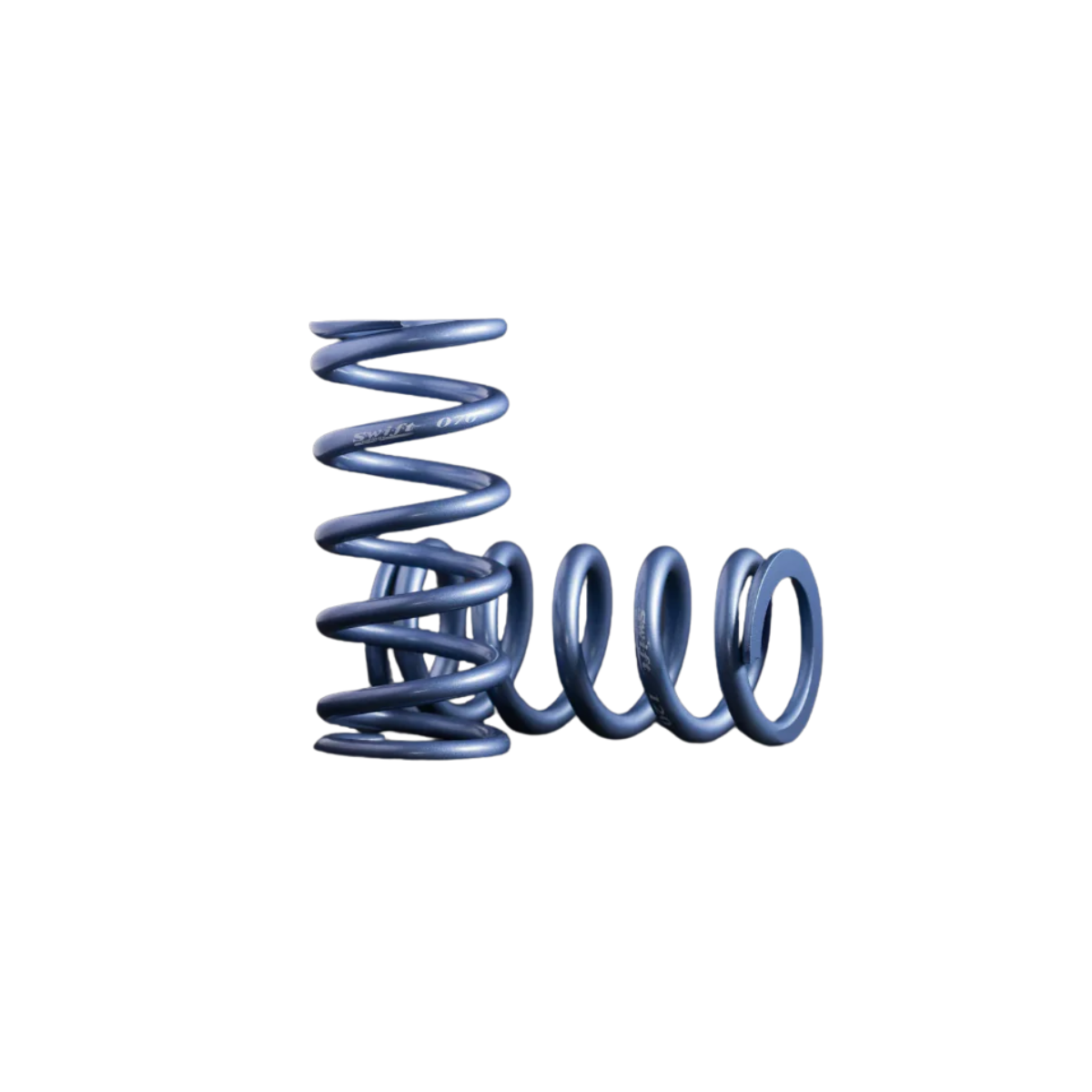

- Ultra Light Swift Racing Springs
- AMSOIL High-Temp Shock Fluid
- Hard Anodized Lock Rings for Frequent Adjustments
- Upgradeable to 2 and 3 way with Penske Reservoirs
- Each shock tested on Roehrig D
- NVH Isolators
- Monotube Design for Performance and Durability

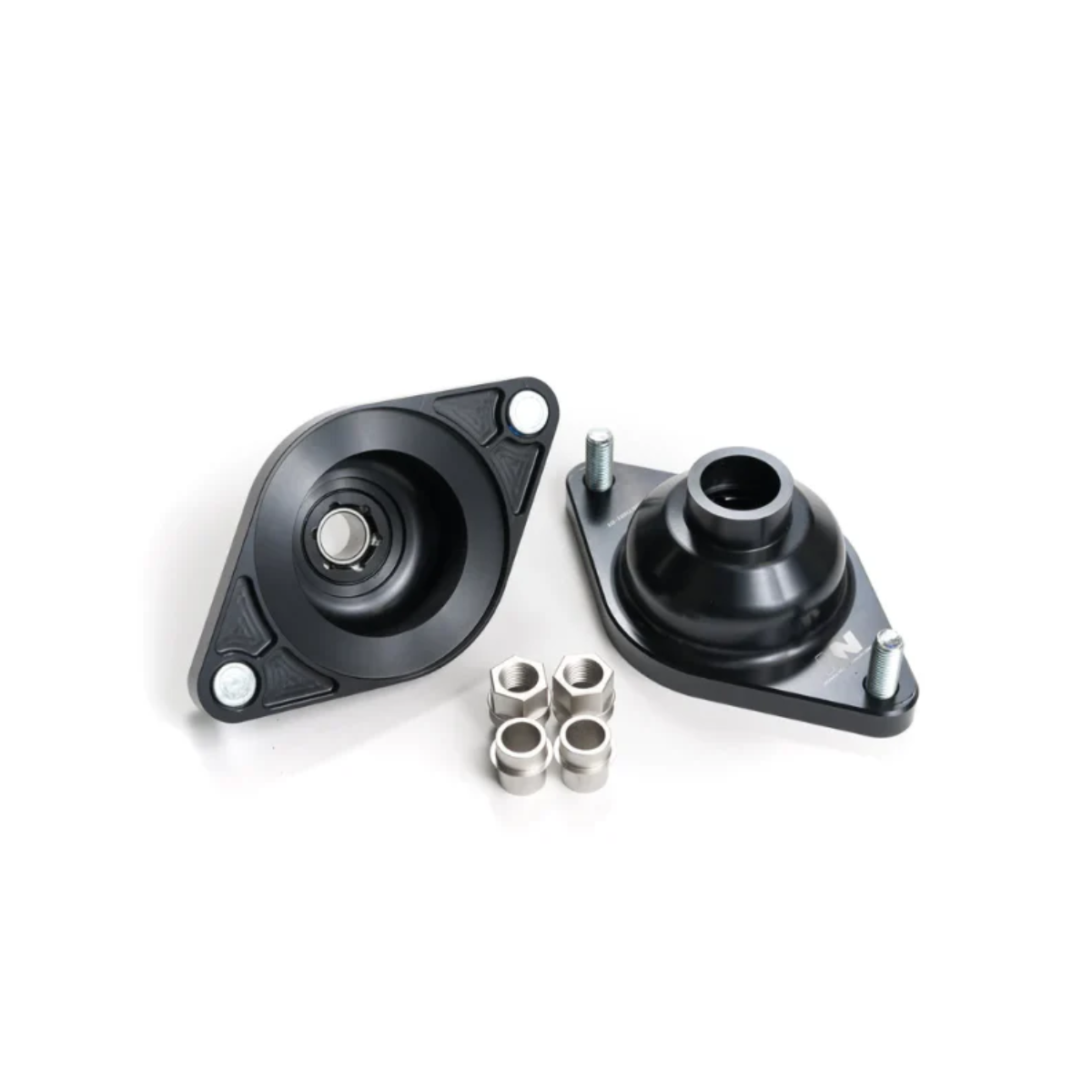

- T6 6061 Aluminium Mounts and Camber Plates
- Spring Perches with integrated Koyo bearings
- Heavy Duty Dust Boots
| SPRING SPEC | FRONT | REAR |
|---|---|---|
| SPRING RATE | 9K | 10K |
| SPRING LENGTH | 180mm | 180mm |
| SPRING TYPE | ANNEX & SWIFT SPRINGS | ANNEX & SWIFT SPRINGS |
| OTHER FEATURES | FRONT | REAR |
|---|---|---|
| UPPER MOUNTS | TOP HATS | TOP HATS |
| KOYO BEARING | YES | NO |
| DAMPER EXTENSION | NO | NO |
| SWIFT SPRINGS | YES | YES |
| HELPER SPRINGS | YES | YES |
