HKS GR Corolla M-Series Spark Plug (Stock Heat)
hks50003-M40HL
- FREE DOMESTIC SHIPPING ON ORDERS OVER $199
Price is PER Plug, 3 required for full replacement
on G16E-GTS
Overview

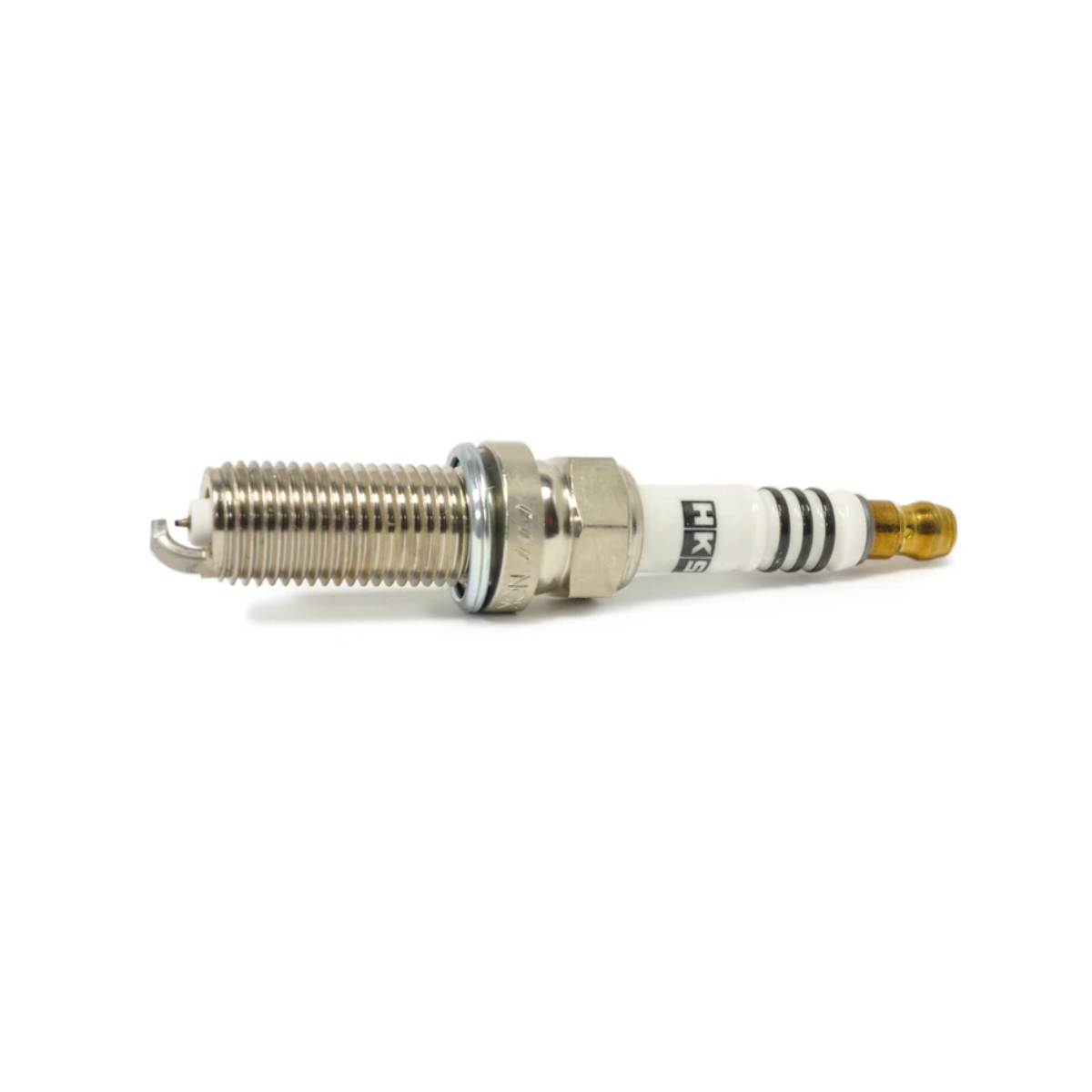

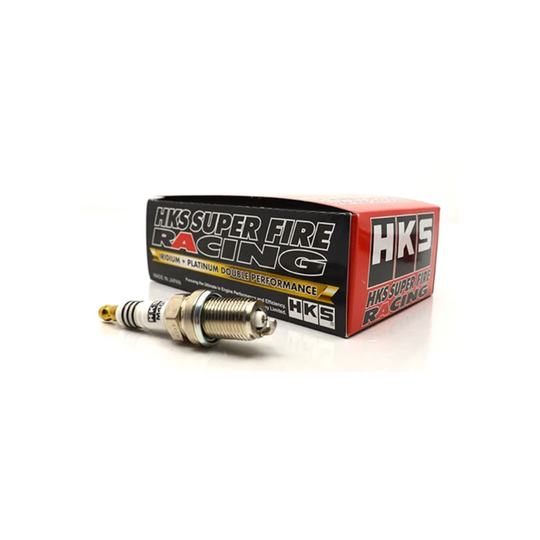

The HKS Super Fire Racing M‑Series spark plug is a high‑performance iridium spark plug designed for tuned or high‑load engines, offering improved durability and ignition performance over many stock plugs.
Key Features & Specs
-
0.6 mm Iridium Alloy Center Electrode — strong, efficient spark delivery with lower voltage requirement and excellent durability under stress.
-
Platinum Chip Outer Electrode — longer wear life and consistent gap maintenance even under aggressive conditions.
Advanced Ignition Enhancements
-
Short‑Type Outer Electrode (Anti‑Vibration) — reduced moving mass resists vibration and electrode wear at high RPMs.
-
Thermal Edge Ceramic Insulator — helps shed carbon deposits that can misfire or foul plugs during varying operating conditions.
-
Spark Support Gap — micro‑gap design around the insulator tip that helps keep combustion reliable and clean.
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | 50003‑M40HL |
| Series | HKS Super Fire Racing – M‑Series |
| Heat Range | Equivalent to NGK #8 |
| Thread Size | 12 mm × 26.5 mm |
| Wrench Size | 14 mm |
| Electrodes | Iridium center / Platinum ground |
| Sold | Individually (each plug) |
