Name: CSF x Jackson Racing GR Corolla Intercooler Kit
Brand: CSF
SKU: csf8285
Price: 899.0 USD
Availability: InStock

CSF x Jackson Racing GR Corolla Intercooler Kit

$899.00

Shipping calculated at checkout.

Color

Silver

Black

FREE DOMESTIC SHIPPING ON ORDERS OVER $199

Not CARB Legal

CSF x Jackson Racing GR Corolla Intercooler Kit

The CSF x Jackson Racing GR Corolla Intercooler Kit is a direct fit OEM replacement with improved resistance to heat soak and increased efficiency across the RPM range. While the OE Intercooler for the GR Corolla is actually quite efficient and a good design, there is always room for improvement. Using advanced 3D Scanning along with advanced CAD and CFD software, the engineering teams were able to maximize the size of the intercooler while maintaining optimal flow and greatly increasing efficiency.

Key Features

CSF Racing Tube and Fin Stepped Core
- High-Performance Tube & Fin Stepped Core Design for Maximum Surface Area Contact and Internal Air-Flow Volume
- CAD developed for proper fitment
- Lightweight tube and fin design to keep weight off the front end and fight heat soak (13.9lbs)
- Factory tested for quality assurance
Cast Aluminum Intercooler End Tanks
- Smooth transitions to maximize airflow

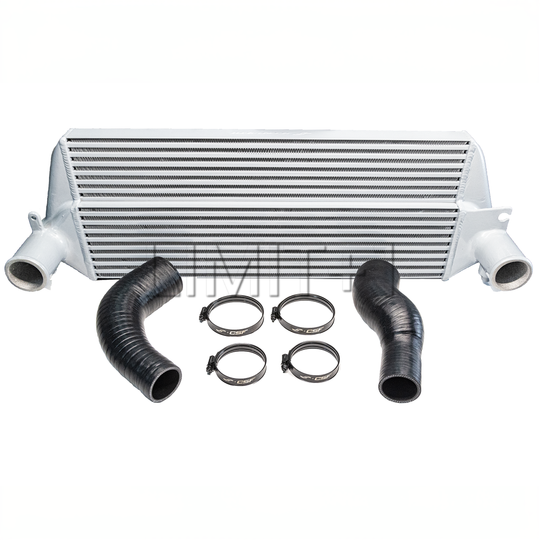

- Includes Motorsport Grade Hoses and Clamps with larger 2.5in (63.5mm) Inlet/Outlet Connections
All Original Design
- Direct OEM replacement
- True Plug-and-Play "Drop-in Fit" Installation. The OE Air Ducting requires minor trimming to be used with the Intercooler
- Developed in partnership with CSF for maximum cooling and premium fitment
- 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
- Available in Silver and Black finishes (Pre-cut logo stencil included)
The Jackson Racing Difference
- 45 years of Proven Engineering and Performance
- Tested by Champions

PERFORMANCE & TEST DATA

Feature	CSF	OEM
*# Cooling Tubes*	15	9
*# Cooling Fin Rows*	16	10
*Fin Height*	8.5mm (bottom) & 7.5mm (top)	7.9mm
*Core Thickness*	86mm (bottom) & 40mm (top)	80mm
*Core Material*	Aluminum	Aluminum
*Tank Material*	Aluminum	Plastic & Aluminum
*Construction*	100% TIG Welded	Crimp on Gasket

*May not fit AUTO 2025 vehicles due to different charge pipe lengths.
