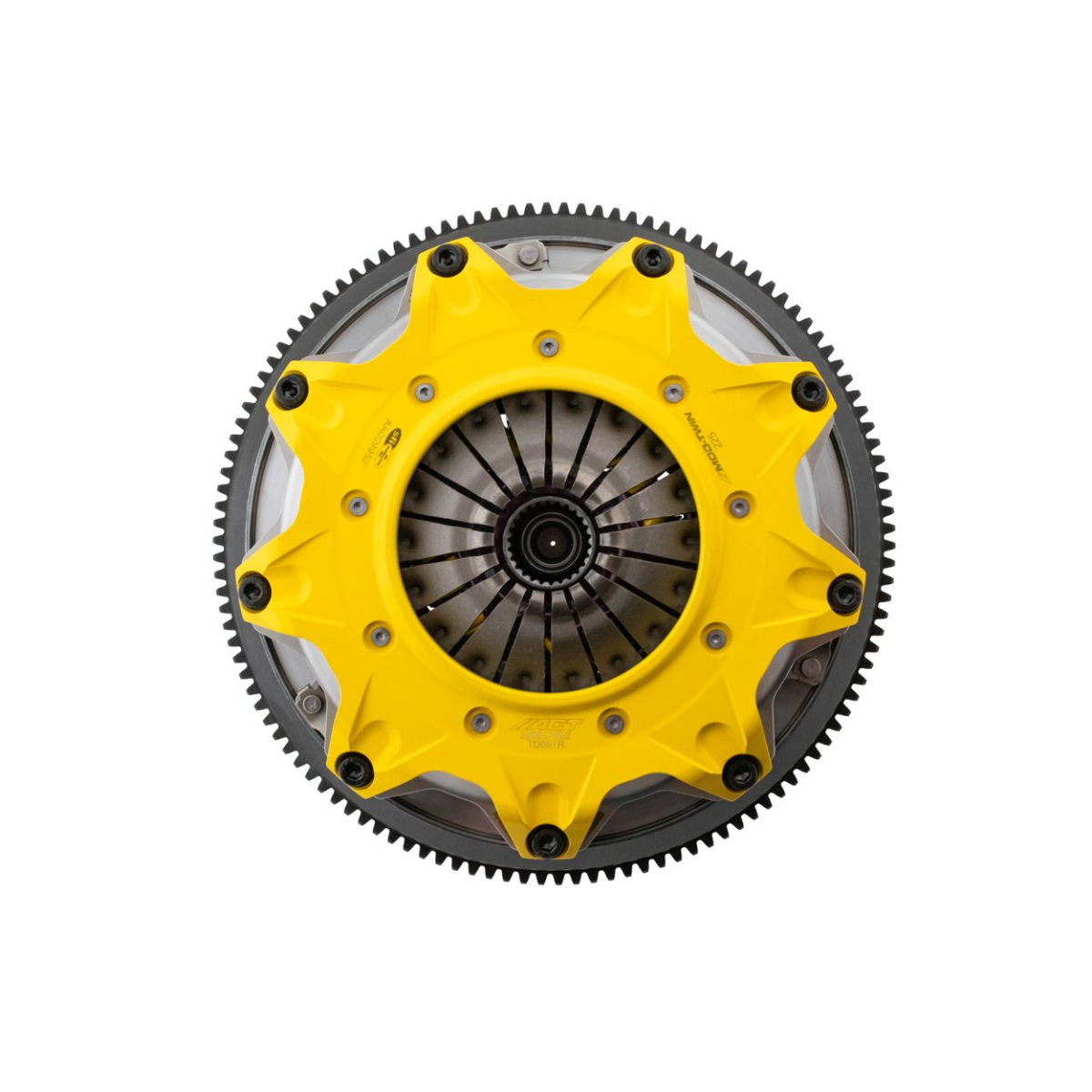

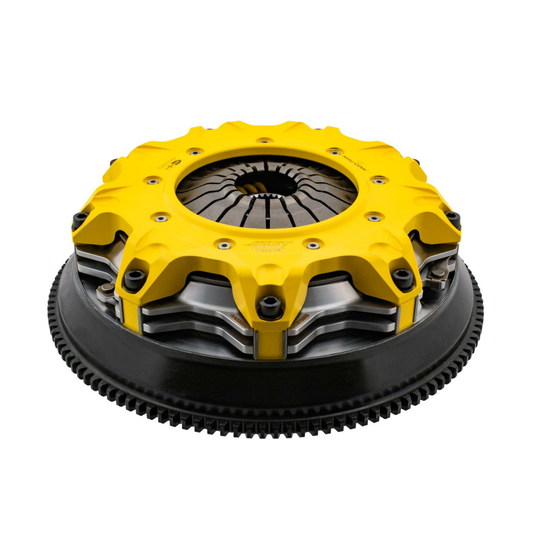

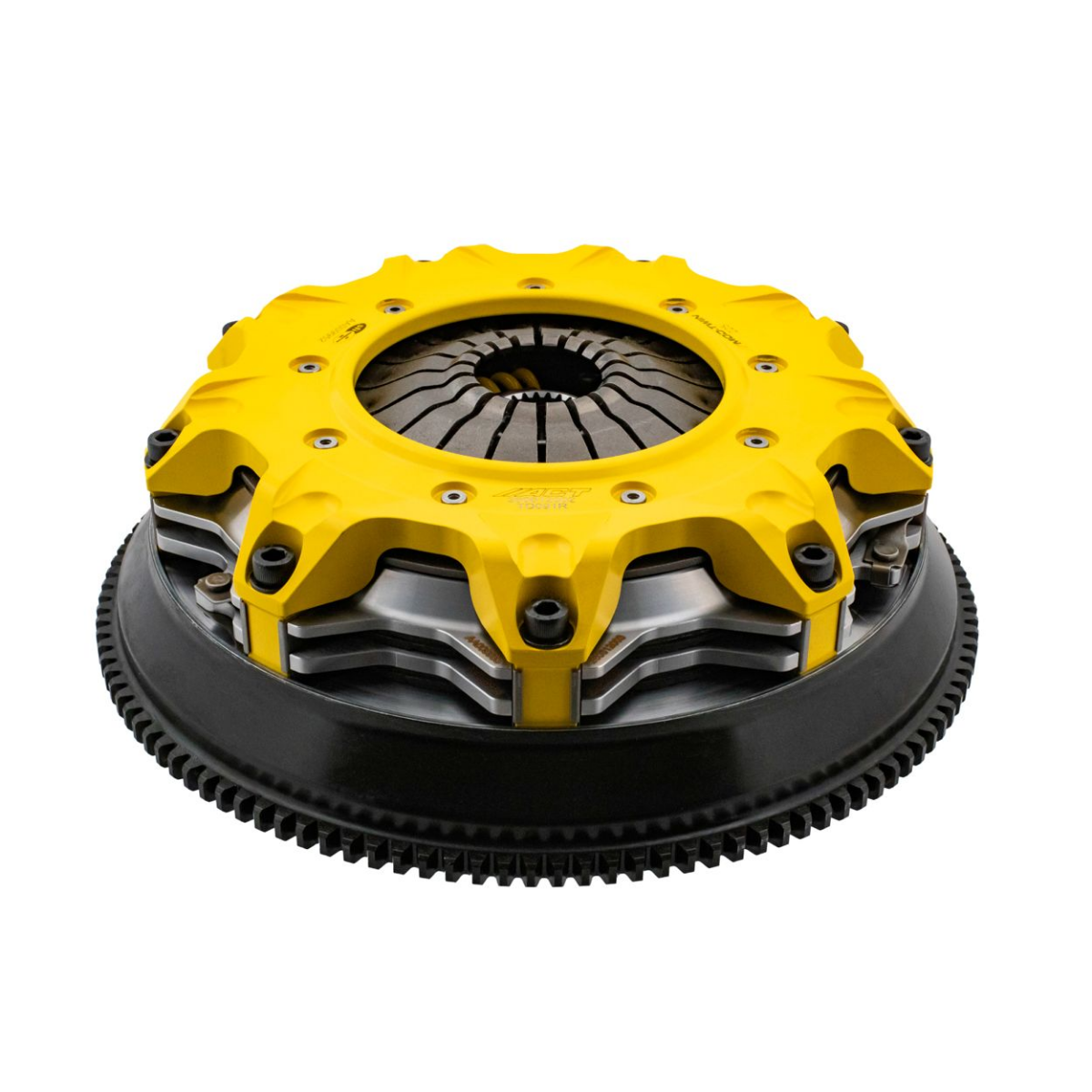

ACT GR Supra B58 Twin 225 Extreme Rigid Clutch Kit - Street
actT2S-B02
SPECIAL ORDER ITEM
- Estimated arrival will be incorrect at checkout.
- This item is not ready to ship.
- May ship with signature confirmation.
Special order items are final sale.
Once an order is placed it cannot be cancelled or returned.
This product has a longer lead time than most. Lead times may vary on products with multiple options.
To check availability, please direct all inquires to support@limitplus1.com
Overview
Twin 225 XT Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered applications by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design.
Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service.

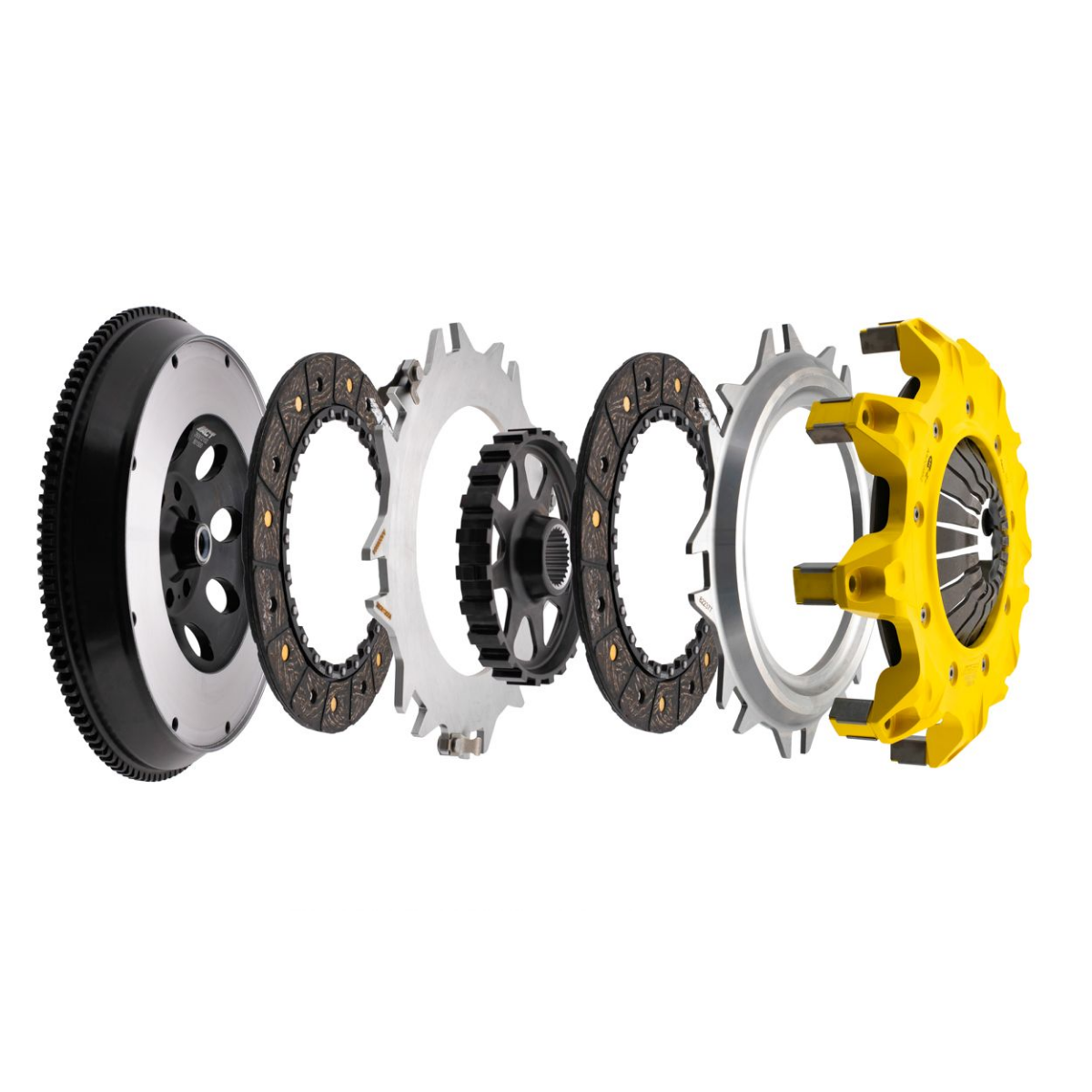

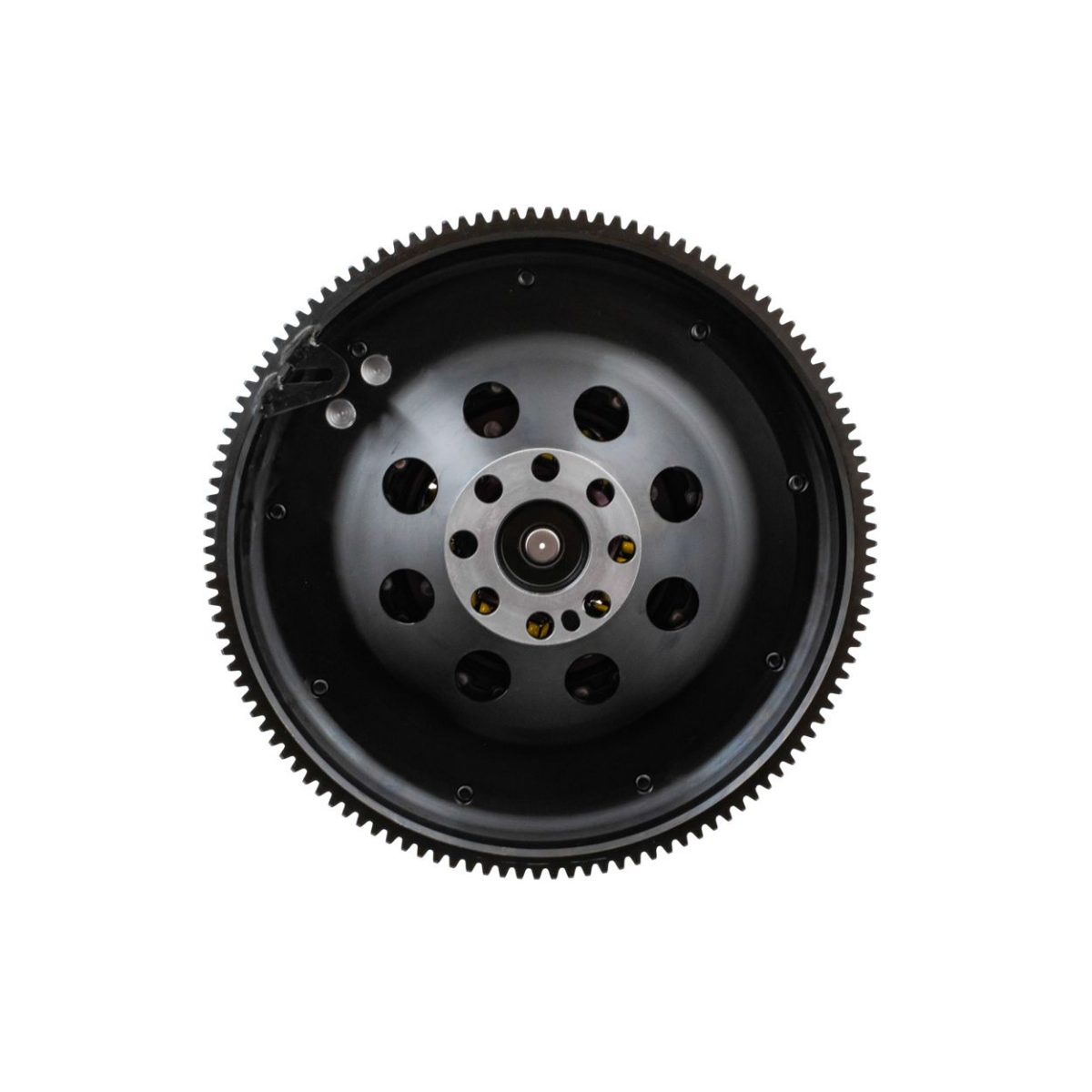

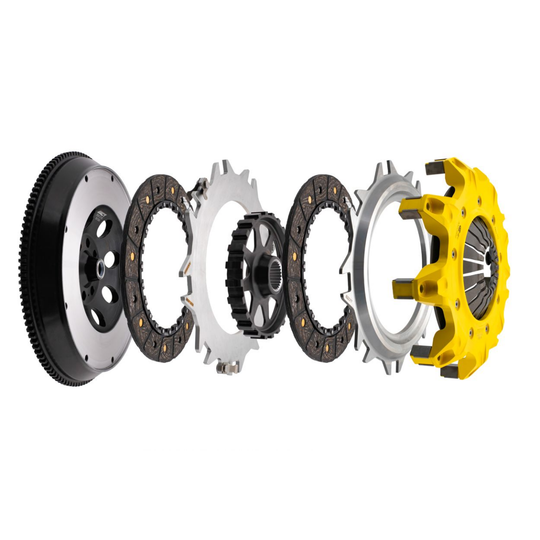

This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
| Feel | Soft progressive engagement, light pedal effort, smooth shifting with moderate to increased transmission gear noise |
|---|---|
| Life | Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions |
| Quality | Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances |
| Recommended Use | Street or Street/Strip |
Specifications
-
Torque Capacity (ft/lbs.): 850
-
Torque Capacity Over OE: 78%
-
Disc Material: Organic
-
Clutch Disc Diameter (Inches): 8.8
-
Clutch Disc Diameter (Millimeters): 225
-
Input Shaft Diameter (inches): 1.375
- Pressure Plate Type: Xtreme
Compatibility
- 2023+ GR Supra 3.0 (B58 w/manual transmission)
