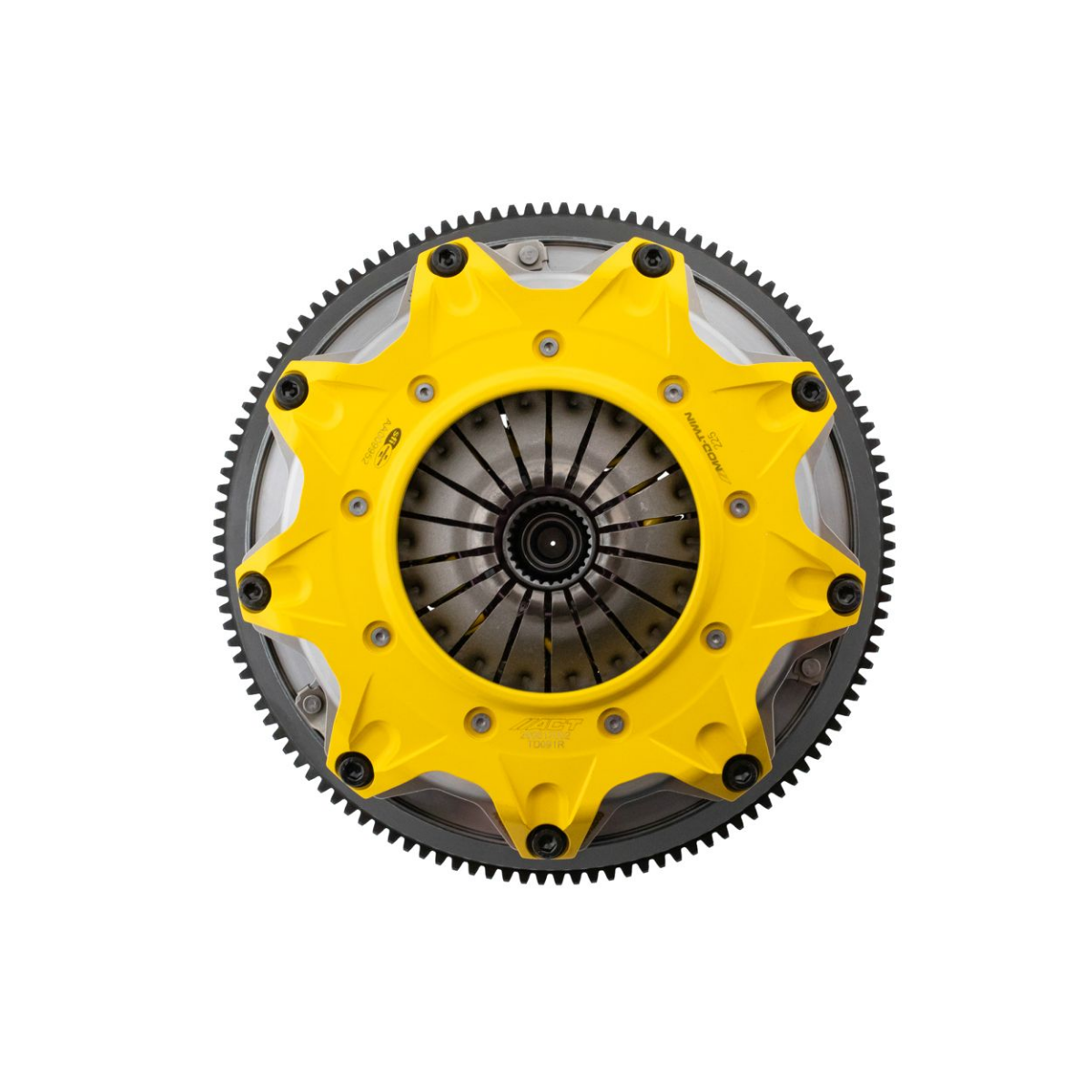

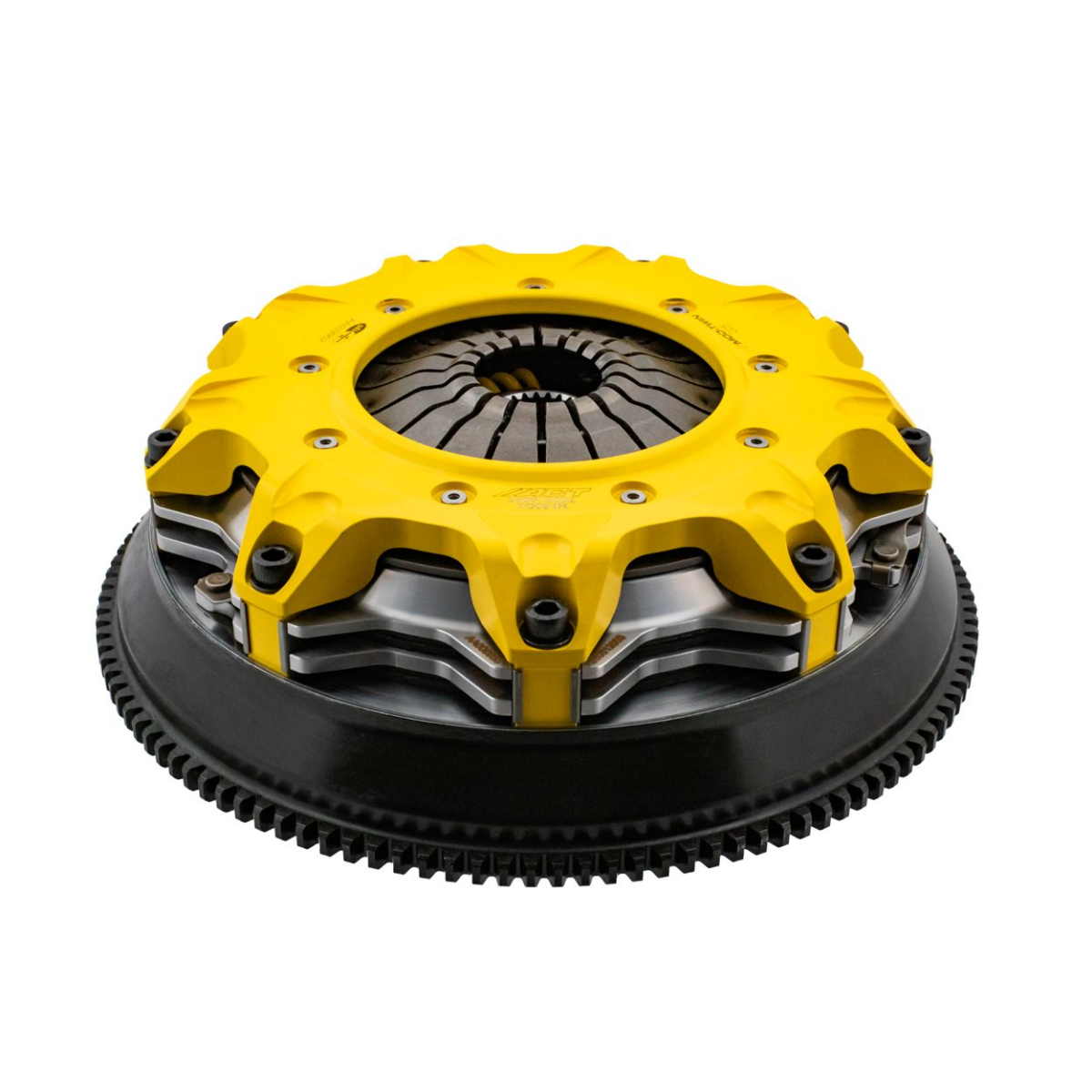

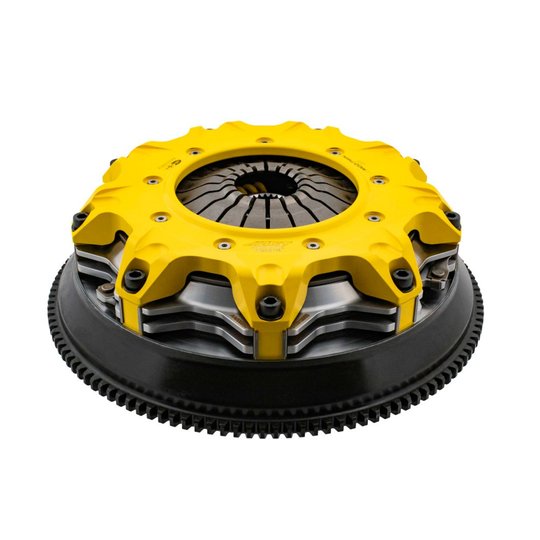

ACT GR Supra B58 Twin 225 Extreme Sprung Clutch Kit - Street
actT2SS-B02
SPECIAL ORDER ITEM
- Estimated arrival will be incorrect at checkout.
- This item is not ready to ship.
- May ship with signature confirmation.
Special order items are final sale.
Once an order is placed it cannot be cancelled or returned.
This product has a longer lead time than most. Lead times may vary on products with multiple options.
To check availability, please direct all inquires to support@limitplus1.com
Overview
Twin 225 XT Sprung Street Kit is designed for high powered application street cars. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable spring center Mono-Drive hub in a completely modular design.
Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration.

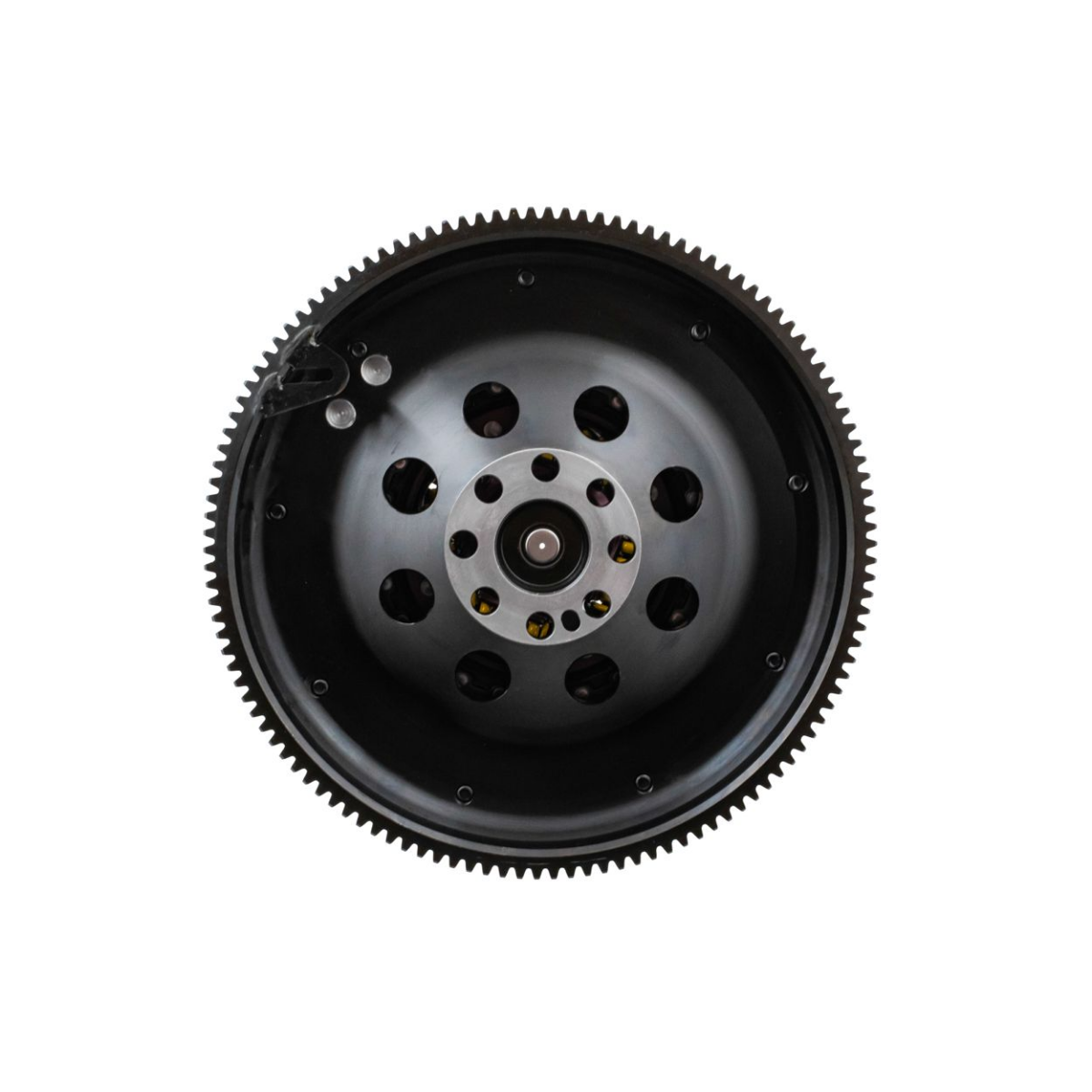

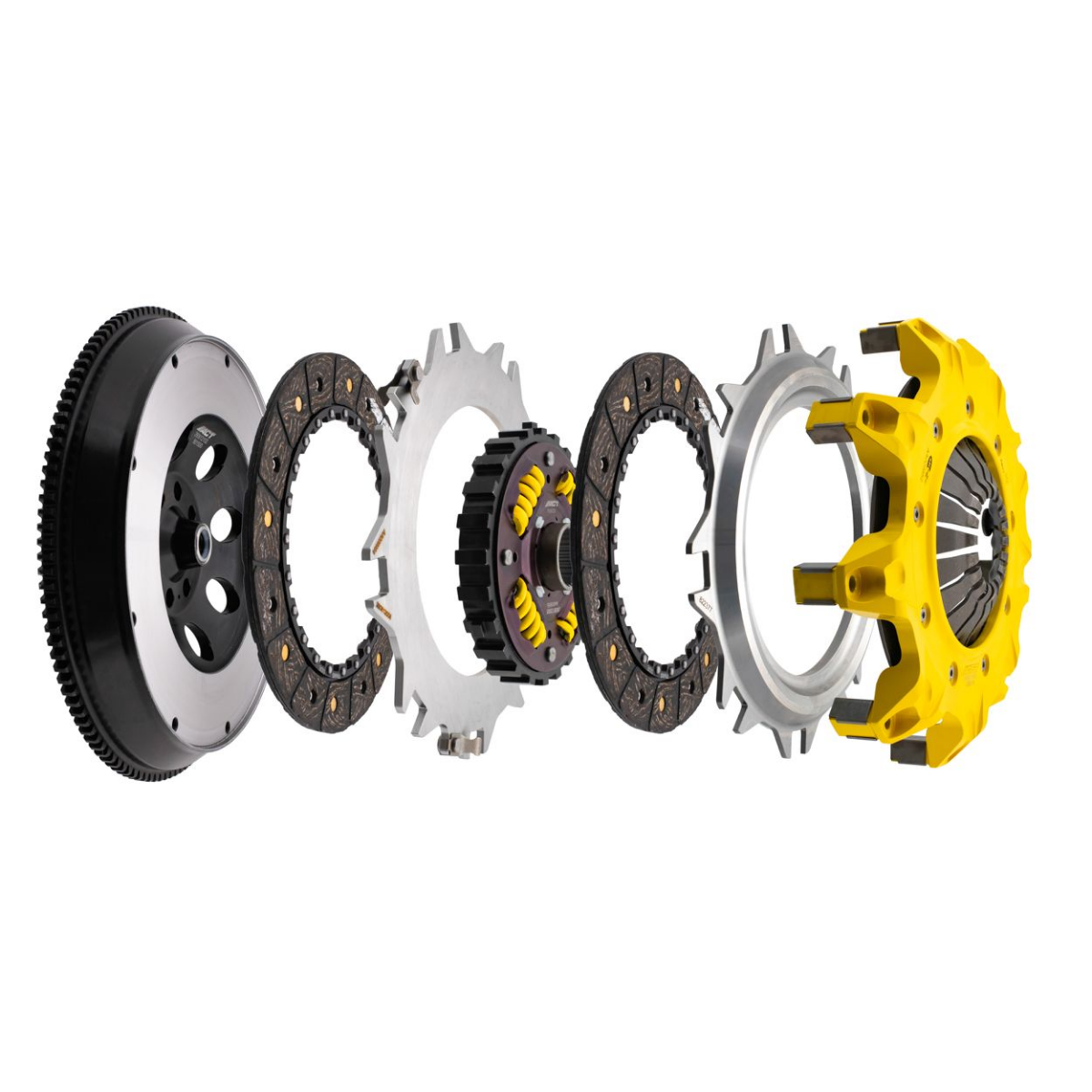

This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
| Feel | Soft progressive engagement, light pedal effort, smooth shifting with moderate to increased transmission gear noise |
|---|---|
| Life | Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions |
| Quality | Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances |
| Recommended Use | Street or Street/Strip |
Specifications
-
Torque Capacity (ft/lbs.): 850
-
Torque Capacity Over OE: 78%
-
Disc Material: Organic
-
Clutch Disc Diameter (Inches): 8.8
-
Clutch Disc Diameter (Millimeters): 225
-
Input Shaft Diameter (inches): 1.375
- Pressure Plate Type: Xtreme
Compatibility
- 2023+ GR Supra 3.0 (B58 w/manual transmission)
