Name: Brembo GR86 GTS BBK - 4 Piston Cast Monoblock Calipers (345x28 2pc Rotors) - Rear
Brand: Brembo
SKU: 2P1.8042AS
Price: 4295.0 USD
Availability: InStock

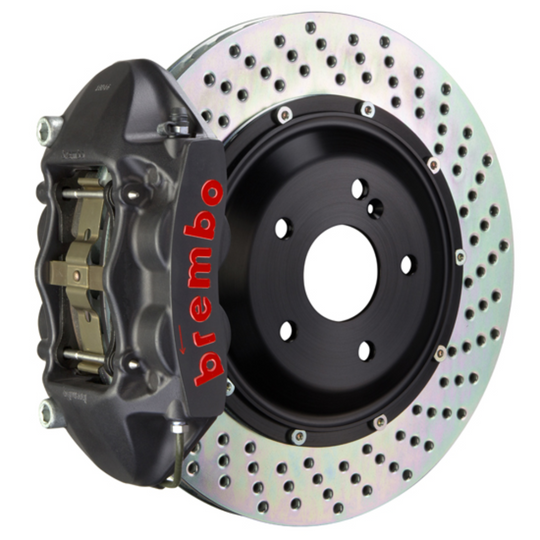

Brembo GR86 / BRZ Rear GTS BBK - 4 Piston Cast Monoblock Calipers w/ Drilled 2-Piece Rotors

Brembo GR86 GTS BBK - 4 Piston Cast Monoblock Calipers (345x28 2pc Rotors) - Rear

$4,295.00

Shipping calculated at checkout.

SPECIAL ORDER ITEM

Rotor Type

Drilled

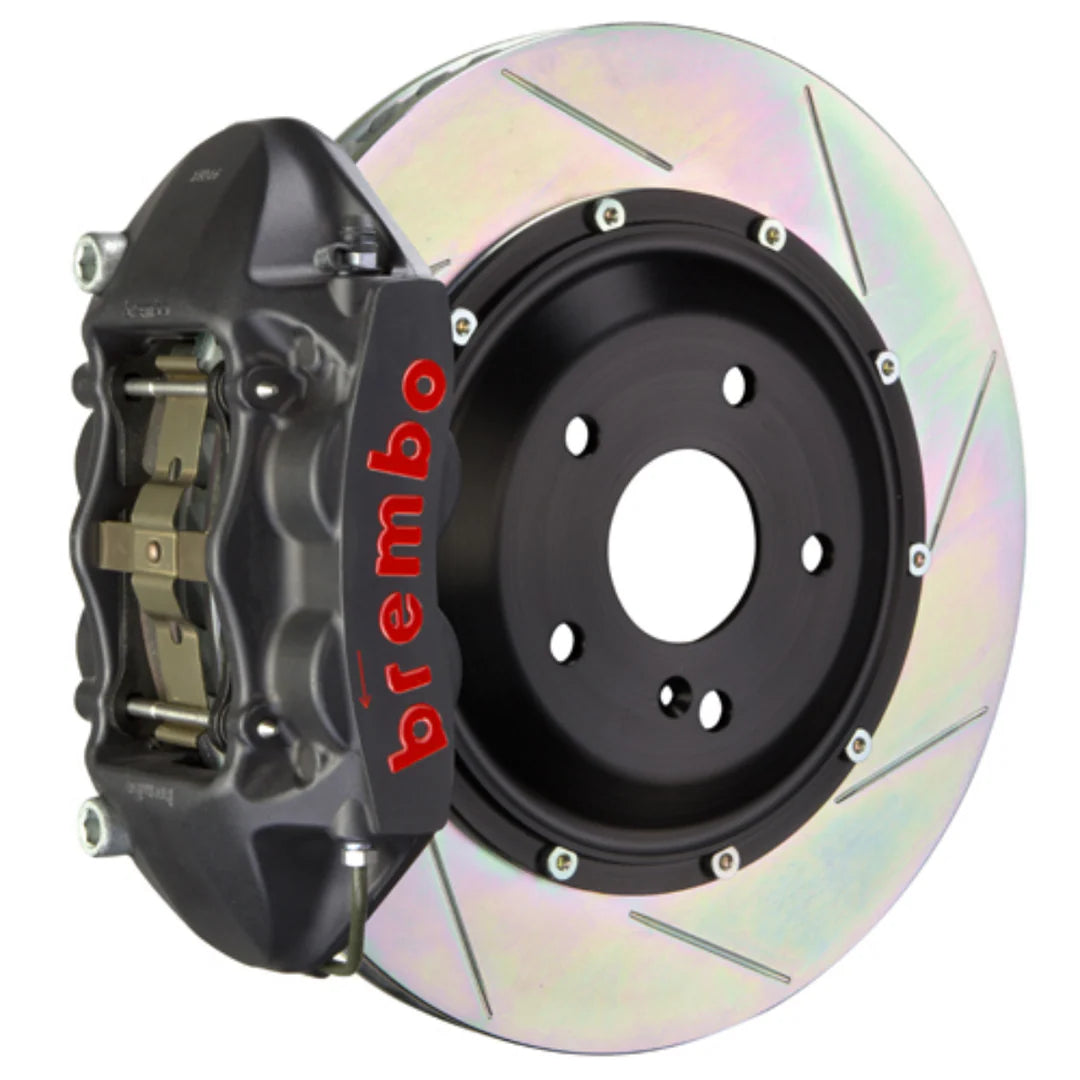

Slotted Type1

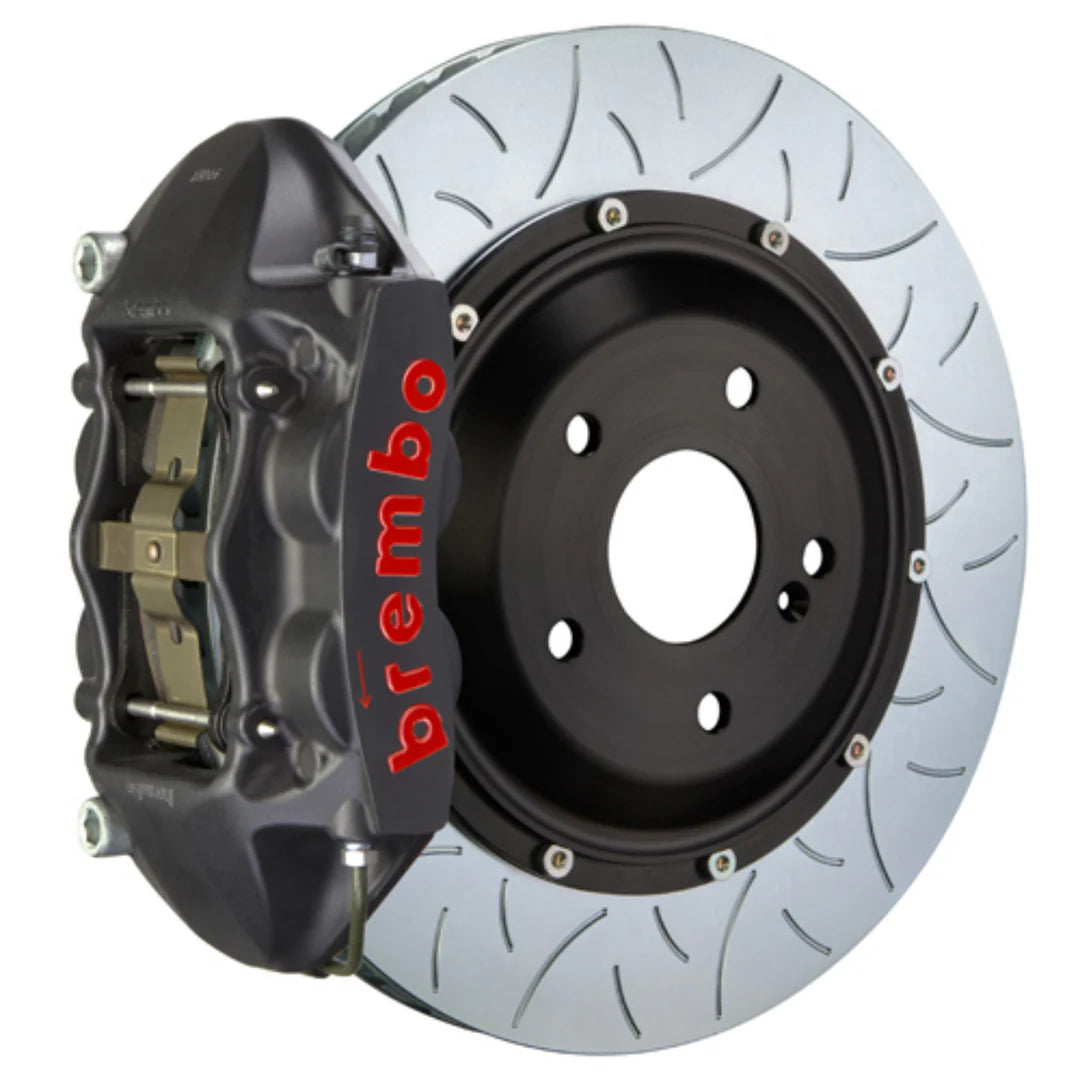

Slotted Type3

Estimated arrival will be incorrect at checkout.

This item is not ready to ship.

May ship with signature confirmation.

Special order items are final sale.
Once an order is placed it cannot be cancelled or returned.

Refund Policy

This product has a longer lead time than most. Lead times may vary on products with multiple options.

To check availability, please direct all inquires to support@limitplus1.com

Complete Big Brake Kit:

(Rear) 4-Piston Monobloc Calipers | 345x28mm (13.6") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

Caliper

Caliper Body: Cast Monobloc Radial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / Recessed Dust Boot / Stainless Steel Insert

Disc

Disc Type: Cross Drilled or Slotted Type1/Type3
Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 345mm
Disc Width (Measurement): 28mm
Disc Air Gap (Measurement): 16mm
Disc Annulus (Measurement): 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

Friction Material

Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 76.4 | 62.1

Included Hardware

Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

Wheel Fitment
How to Measure Wheels for Required Clearance
Brake Profile Cross Section
